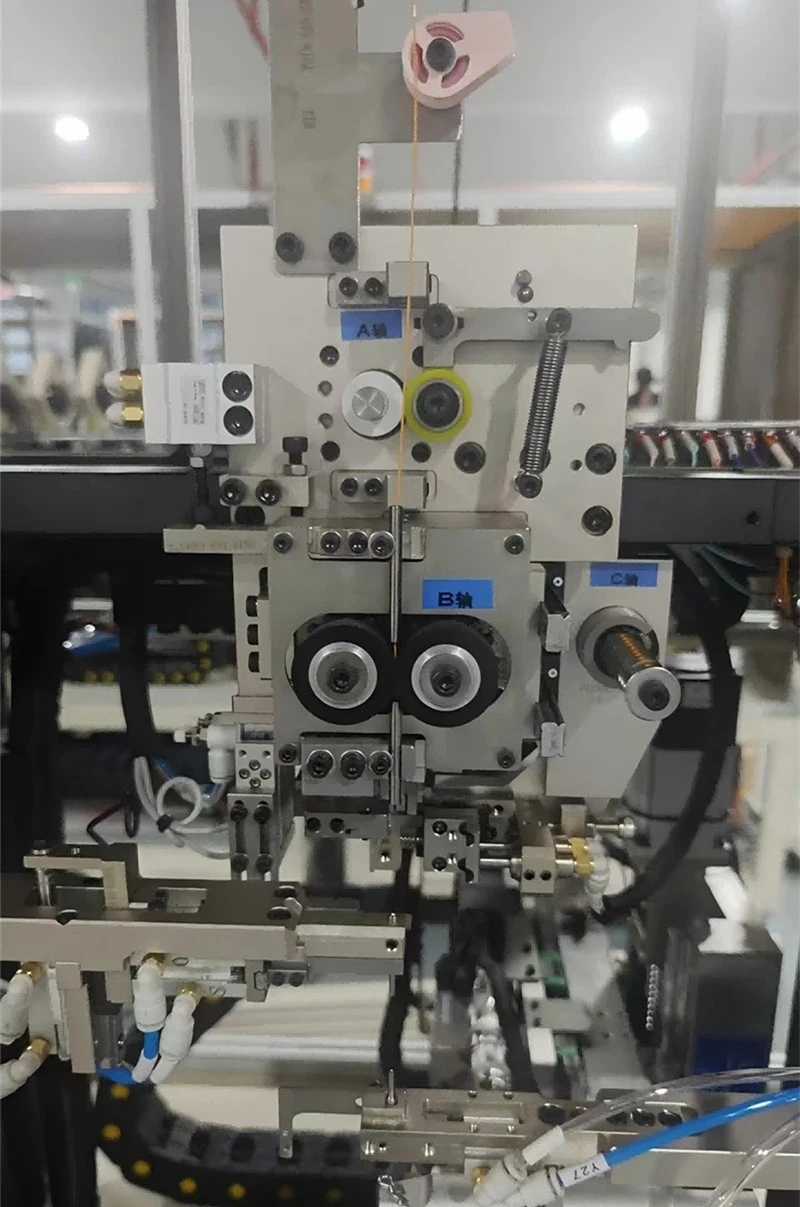

KXD-S16 Double Arms Single Wire Single Sleeve Sleeve Machine
Specification: Main Technical Parameters: (unit: mm)
|
No. |
Item |
Parameter |
|
1 |
Spindle |
1 |
|
2 |
Maximum Speed |
5000 RPM |
|
3 |
Maximum Skeleton Outer Diameter |
85MM |
|
4 |
Total Sleeve Length |
125MM |
|
5 |
Applicable Wire Diameter |
0.1--0.8 MM |
|
6 |
Control System |
KIOXIA LIGHT RING Special Winding Machine Control System |
|
7 |
Power Supply |
AC220V 50HZ |
|
8 |
Air Supply Spec |
0.5--0.6 |
|
9 |
Dimensions |
1200(L)*1100(W)*1800(H) |
|
10 |
Power |
3000W |
|
11 |
Machine Weight |
450KG |
|
12 |
Servo Motors |
12 units |
|
13 |
Structure |
2 mechanical arms |
|
14 |
Usage |
One wire diameter for one machine while winding |
Features
Completes one transformer winding per cycle with simplified programming, zero-adjustment Sleeve, and automatic positioning
Flexible and diverse online production mode. Single machine production can be connected to form a production line.
Start/end terminals can be mounted on arbitrary pins (dual wires in one sleeve cannot be separated).
Compatible with all standard transformer sizes and complex processes.
The starting and ending ends can be wrapped around any different foot positions.
The common feeding structure is for both thick and thin wires and it is suitable for the production of both thick and thin wires simultaneously.
