Your Professional Stator Winding Machine Manufacturers
As a trusted manufacturer, we are committed to delivering advanced Stator Winding Machine backed by years of industry expertise. Our product line is designed to meet the evolving needs of modern manufacturing, offering high precision, superior automation, and exceptional reliability.
Equipped with state-of-the-art servo drive technology and intelligent software control, our stator winding machines ensure accurate coil placement, consistent tension control, and optimal winding quality across a wide range of stator configurations.
By integrating advanced automation and user-friendly operation, we enable manufacturers to enhance productivity, improve product performance, and upgrade their production lines to meet next-generation technological demands.
-

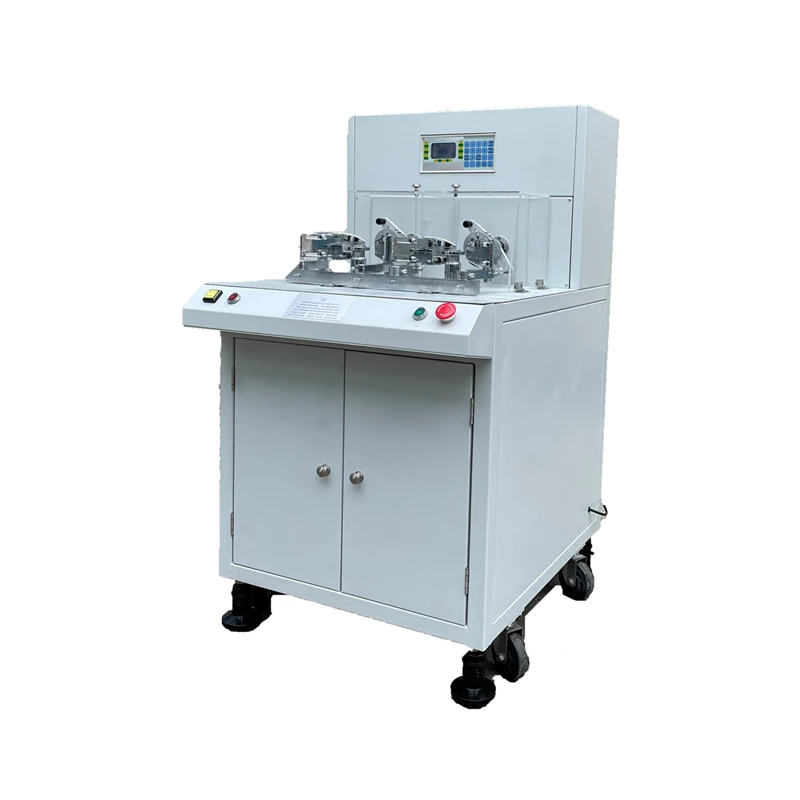

![Ceiling Fan Winding Machine]()
Ceiling Fan Winding MachineModel: ADSKX22-2Name: ADSKX22-2 Ceiling fan winding machineSpindle number: 2. Wire size range: 0.1-1.2mm. Loop diameter: 200mm. The max wire spacing: 9.99mm
Why Choose Us
High Quality
The programs of our machines adopt a self-developed Chinese operating system, which is well understanding and easy to operate. The mechanical structure is rational, with the main body made of fully cast components. This design delivers excellent rigidity, high speed, high precision, stable performance, and long durability.
Professional Team
Backing our product range is a team of specialist engineers with deep expertise in all facets of coil winding technology. When faced with complex or unique coil winding challenges, we consistently deliver innovative, practical solutions-ensuring our partners overcome production hurdles and achieve operational excellence.
Production Market
We maintain close partnerships with clients and collaborators across Southeast Asia, Europe, the Americas, Australia, and New Zealand. To ensure localized support, we offer on-the-ground sales, technical assistance, and after-sales service in these regions-eliminating geographical barriers and delivering timely support whenever our partners need it.
Our Certificate
Our KIOXIA LIGHT RING have ISO9001:2015, CE approvals, SGS/ IEC certificate/ EMC Certificate, Machines' Patents, "high-tech enterprises" by the government.
Benefits of Stator Winding Machine
Accuracy Winding Technology: Our machines are integrated with servo motors and AI controllers in order to enable precise positioning of the wires in winding. The technology has greatly reduced winding faults and improved the efficiency of the motor overall. Live monitoring tracking systems allow operators to track every winding cycle, thus stators have coils whose shapes are all equal.
Advanced Tension Control: Our equipment features smart tension control systems that automatically regulate the tension on the wire in the length of the winding. This removes the possibility of wire breakage or twisting and provides a uniform coil density. The tension control system also provides effortless changes in wire gauge, thus the equipment can be utilised across a broad portfolio of applications.
Programmable User Interface: We have also provided touchscreen-based HMIs with multilingual support such that machine operation becomes easy. Operators can input winding parameters, save winding programs, and review performance in a simple-to-use interface. Our programmable interfaces are also IoT-based remote monitoring system compatible, thereby making remote control by supervisors an easy affair from any location.
High-Speed Operation: Our spindles are high-frequency spindles and optimized drive trains, which enable our production to increase without compromising accuracy. Wire feed and coil handling automatically lead to a big cutback in cycle time. Our equipment is ideal for mass production ranges where high production needs to be maintained along with stringent quality control.
Specifications
|
Spindle number |
2 |
|
Wire size range |
0.1-1.2mm |
|
Loop diameter |
200mm |
|
The max wire spacing |
9.99mm |
|
Winder width |
100mm |
|
Max speed |
2200 RPM |
|
Spindle motor |
Three Phase motor+AC Driver |
|
Winder motor |
Stepping motor |
|
Input power |
220V 50HZ/60HZ |
|
Machine size |
720×950×1300mm |
|
Package size |
860×1400×1320mm |
|
Net weight |
180kg |
|
Gross weight |
220kg |
Types Of Our Stator Winding Machine
Manual Stator Winding Machine: We produce Manual Stator Winding Machines for small workshop and repair shops. They provide economy with precision in winding. We have used ergonomically shaped handles and elastic mounts so that the machine will not tire the operator and is easy to be manually operated. With this, our hand-operated machines have mechanical precise controls as well as hardened parts that provide performance under the worst conditions.
Semi-Automatic Stator Winding Machines: Our Semi-Automatic Stator Winding Machines take the middle ground between the fully automatic and hand-type. These have digital control panels and programmable winding profiles to deliver maximum efficiency and consistency. We have designed them with tension control systems permitting even winding and eliminating human error. Semi-automatic machines are ideal for the medium scale of industries since they enhance the production rate with no loss of flexibility in handling various sizes of stators.
Fully Automatic Stator Winding Machines: We offer Fully Automatic Stator Winding Machines suitable for mass production lines. They incorporate PLC control, robot arm mounting, and online monitoring to guarantee precise high-speed windings. They are capable of performing automatic wire patterning of intricate wire patterns with minimal human intervention and accurate coil placement. Our automatic machines find wide application in mass-scale uniform stator production lines such as electric vehicle manufacturing and industrial motor manufacturing.
Needle Winding Machines: We manufacture Needle Winding Machines, which are customized to motors with intricate slot-filling conditions prevalent in BLDC and permanent magnet motors. With servo-controlled needle technology, the equipment is capable of precise deep-reach stator slot winding. Wire direction systems controlled by computers and multi-layer capability help the equipment provide even coil winding and little wire damage.
Customized process
1. Contact customer service and provide files or select templates
2. Confirm the quantity andmaterial ruler. （customer the size is decreased servicewill quoteafter）
3. Payment after the buyer confirms the order
4. Proofing according to samples/ drawings provided by customers
5. Buyer confirms the sample and arranges large quantities
6. Finished product packaging and inspection,delivery
7. Plasegivei-spa andconpeming recelpt afterinspecting the goods
Packaging/Shipping
FAQ
We're professional stator winding machine manufacturers and suppliers in China, specialized in providing high quality customized machines. We warmly welcome you to buy high-grade stator winding machine in stock here from our factory.
cnc winding fan, ceiling fan cnc machine, bldc ceiling fan winding
