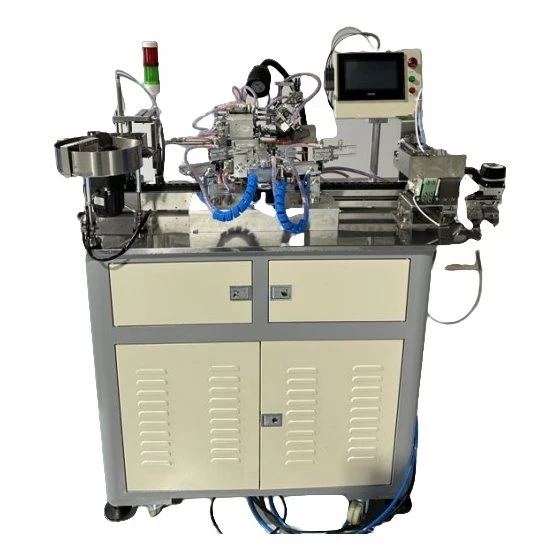

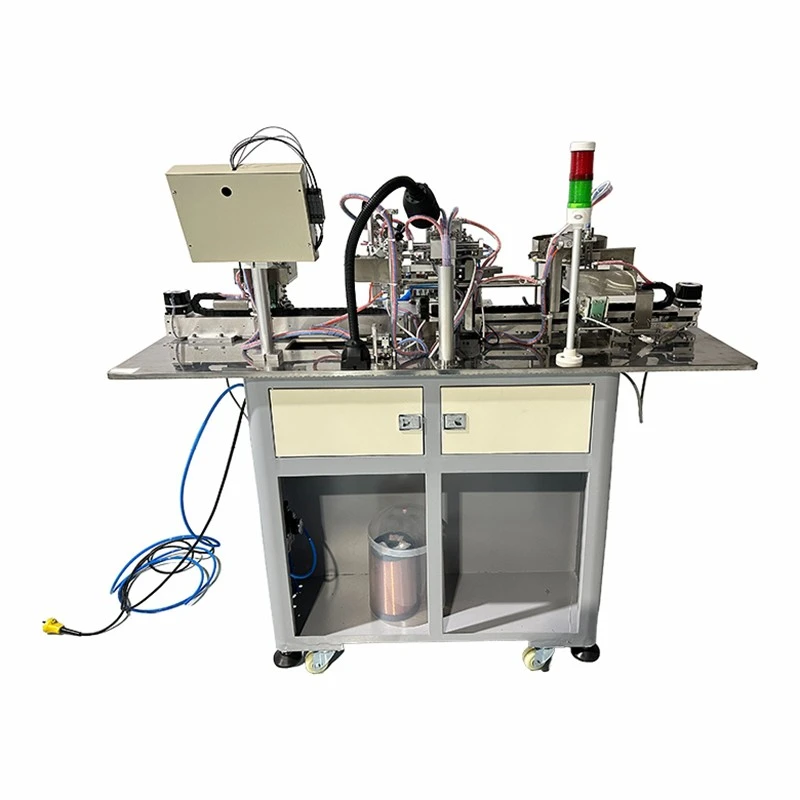

KXT-800A Full Auto Slider Type Winding Machine for Current Transformer
Specification
|
Machine head |
KXT-800A-S4 |
KXT-800A-S5 |
KXT-800A-S6 |
|
Wire diameter |
0.06-0.18mm |
0.1-0.28mm |
0.1-0.28mm |
|
Minimum finished diameter |
6mm |
8mm |
10mm |
|
Core height |
4-15mm |
5-15mm |
5-20mm |
|
Core outer diameter |
10-25mm |
20-40mm |
20-40mm |
|
Magazine inner diameter |
98mm |
120mm |
135mm |
|
Magazine height (mm) |
2.8, 3, 3.2, 3.5, 4, 4.2 |
3.5, 4, 4.5, 5, 5.5, 6, 7 |
4.5, 5, 5.5, 6, 6.5, 7 |
|
Machine size |
110*60*132cm |
||
Machine Introduction
The KXT-800A is an advanced, high-velocity system engineered for the large-scale production of miniature coils, offering a high-efficiency and cost-effective solution for precision manufacturing. By integrating fully autonomous core-loading and wire-feeding mechanisms, it eliminates manual intervention, significantly reducing labor intensity while ensuring superior coil quality. The equipment features a bilingual PLC interface for intuitive programming and utilizes a stepper-motor-driven guide system for high-resolution pitch adjustment and exacting motion control.
Machine Features
1. Autonomous Feed Calibration: Features decoupled regulation of wire loading velocity and linear length to ensure tailored material management.
2. Independent Motion Parameters: Provides discrete control over traverse speed and revolution counts, allowing for highly customized winding profiles.
3. Bilingual HMI: Equipped with a high-resolution touch interface supporting both Chinese and English for intuitive system navigation.
4. Real-Time Telemetry: Offers a comprehensive status display for instantaneous monitoring of operational variables and data verification.
5. Multi-Axis Stepper Drive: Utilizes programmable stepper motor control to facilitate arbitrary core rotation and bidirectional movement.
6. Programmable Logic Memory: The onboard controller stores multiple winding configurations, each capable of executing complex, multi-step sequences to meet diverse technical requirements.
7. High-Resolution Optical Sensing: Incorporates a precision fiber-optic sensor with digital feedback for consistent turn counting and simplified calibration.
8. Variable Pitch Modulation: Supports programmable pitch adjustment, enabling a seamless transition from coarse to ultra-fine traverse densities.
9. Servo-Driven Accuracy: Employs a high-performance servo system to ensure exacting wire loading precision and constant speed stability, with fluid transitions between loading and traverse phases.
