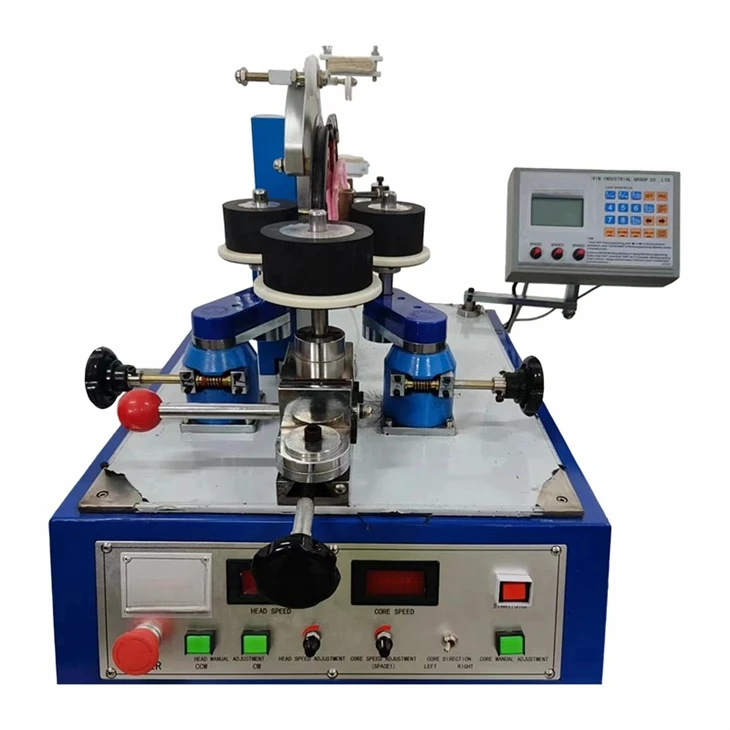

KXL-0119 Toroid Digital Transformer Winding Machine
Specification: Main Technical Parameters Table: (Unit: mm)
|
Equipment model |
KXL-0119 |
|
Winding mode |
Gear type |
|
Finally complete the outside diameter |
80-200 |
|
Minimum finished inside diameter |
40 |
|
Maximum finished height |
80 |
|
Wire diameter |
0.7-2.5 |
|
Perimeter of magazine |
300 |
|
Width of magazine |
8-25 |
|
Maximum speed |
230 RPM |
|
Operating voltage |
220V/50HZ |
|
Overall dimension |
500x600x750 |
|
Weight |
120KG |
Features
1.KXL-0119 Toroid Digital Transformer Winding Machine are advanced, strongly built workhorses capable of winding light as well as heavy wire without insulation damage.
2.One set standard automatic toroid coil winding include one PCS winding shuttle only, other sizes winding shuttles are optional.
3.The open gap gear rack and hinged gap magazine of Toroid Digital Transformer Winding Machine facilitate core change, maximizing output.
4.Accurately wire and tape spacing by adjustable.
5.Toroid Digital Transformer Winding Machine can easily exchangeable magazines secure maximum flexbility.
6.Extremely powerful,maintenance free AC motors for main drive and core rotation.
Advantages
1.Complete range of articles, large range of wire diameter, Multipurpose
2.Good compatibility, parts are interchangeable
3.High stability, part quality guarantee
4.High production efficiency, no wire breaking at high speed winding
5.Easy to operate, High learnability
Application
The KXL-0119 Toroid Digital Transformer Winding Machine is ideally suited for manufacturing a wide range of toroidal components, including
Toroidal inductors,
Toroidal transformers,
Toroidal current transformers,
Toroidal coils,
Toroid choke coils,
Power inductors,
UPS inductors,
Converter inductors,
Heavy toroidal cores.
Engineered with advanced digital controls, this specialized machine delivers precise winding performance tailored to the unique requirements of these toroidal products, ensuring consistent quality and efficiency across diverse applications.
