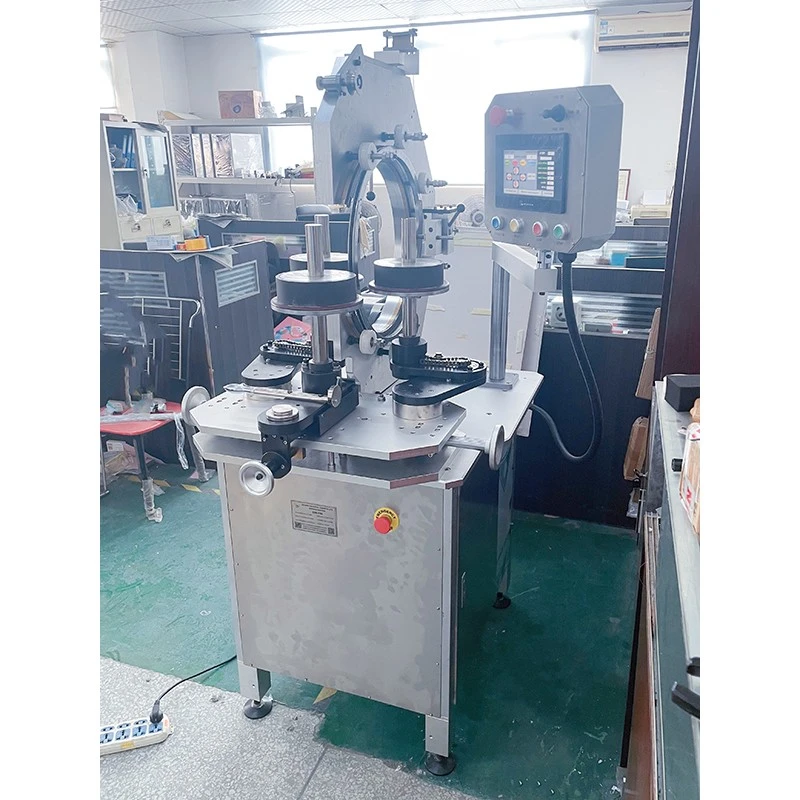

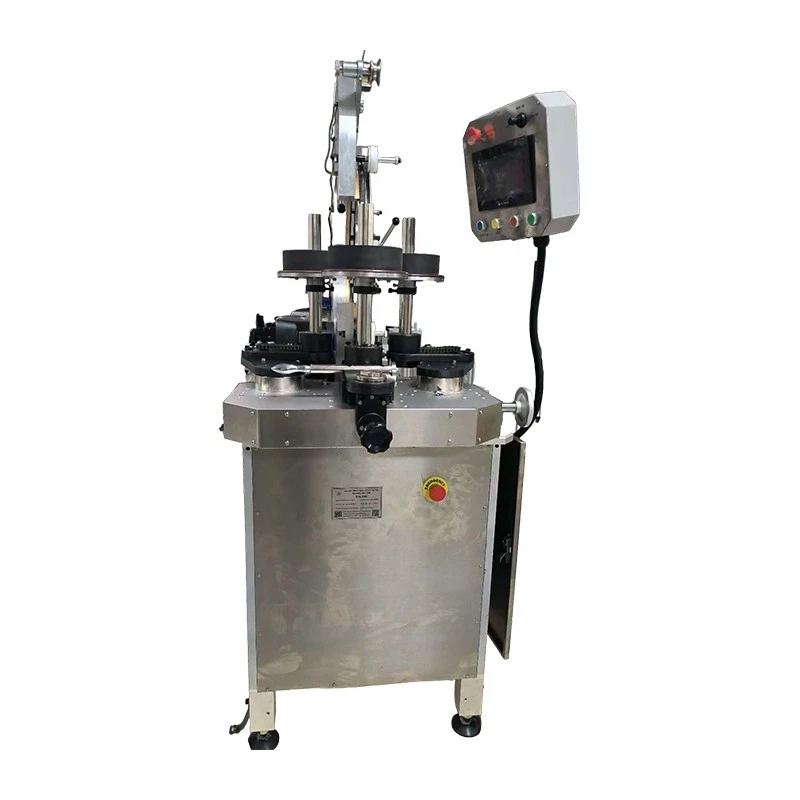

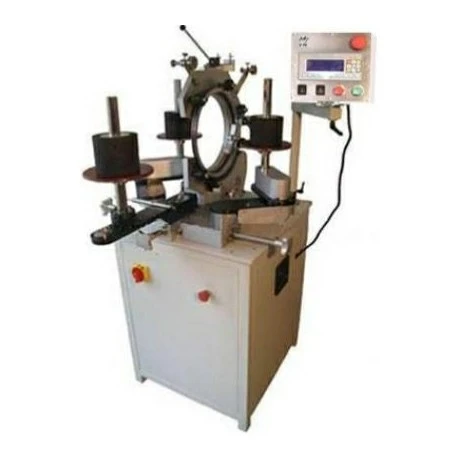

KXP-F60 Automatic Small Toroidal Transformer Coil Winding Machine

Specification

	MM	Inch/AWG
Single Wire size	0.5-4.5mm	5-26
Double wire size	2*2.8	2/91/2
Minimum finish inner diameter	From 25mm	From 1.0mm
Maximum completion height	Up to 380mm	Up to 14.96
Maximum finish outer diameter	65-1200mm Interchangeable fixture	2.55-40

Brief Technical Description

1. Structural Architecture and Power Dynamics

The platform features a rigid, floor-standing heavy-duty chassis engineered engineered specifically to sustain the high mechanical loads associated with large magnetic cores and heavy-gauge conductor diameters. This robust structural footprint delivers superior torque output and an expanded operational envelope, ensuring optimal stability during demanding manufacturing cycles. The centralized control architecture utilizes a high-performance PLC paired with an intuitive touchscreen HMI, providing a universal control interface that seamlessly accommodates a diverse array of interchangeable winding heads and clamping fixtures.

2. Modular Hardware Configuration

Constructed from standardized, industrial-grade subsystems, the base assembly integrates:

A centralized digital electronic controller.
A high-torque servo motor dedicated to primary spindle/head rotation.
A precision stepper motor for clamp indexing (with an available closed-loop servo upgrade option for enhanced positioning feedback).

The system architecture includes an open-ended programming interface, allowing operators to easily input, modify, and execute tailored text-based commands directly via the controller firmware.

3. Specialized Application Profile (Model KXP-F60)

The KXP-F60 configuration is optimized for high-difficulty manufacturing envelopes, serving as a dedicated solution for precision insulation tape wrapping and complex coil winding. Its kinematic profile is tailored to manage non-standard product specifications and challenging material behaviors that exceed the capabilities of standard benchtop machinery.
