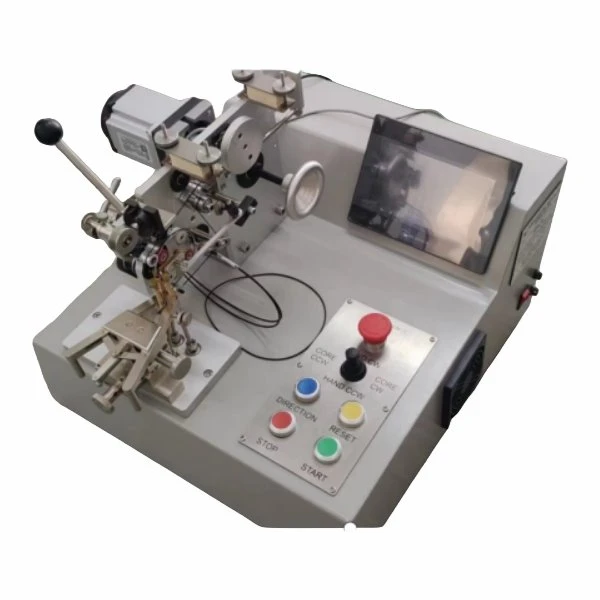

Miniature Toroidal Transformer Winding Machine

1. Next-Generation Automation and Control Platform

The system architecture incorporates a state-of-the-art PLC framework paired with a high-definition touchscreen HMI, developed in strict accordance with premium German engineering and manufacturing standards. This integrated hardware suite offers centralized data management, rapid system configuration, and robust operational stability.

2. High-Speed Kinematics and Optical Metrology

The primary spindle drive is propelled by a high-torque servo motor integrated with advanced fiber-optic sensing technology. This optical feedback loop eliminates signal latency to guarantee absolute, error-free revolution counting accuracy (100% turn precision) even when operating at peak mechanical velocities of up to 1,500 RPM.

3. Digital Micrometer-Level Wire Layering

Lateral conductor distribution is driven by an independent, high-resolution stepper motor. This precise positioning drive ensures highly uniform, dense, and repeatable wire layering, eliminating overlaps or gaps to maintain structural and electrical integrity across the coil profile.

4. Hybrid Dual-Mode Operational Logic

The control firmware features an integrated Fully Automatic / Manual override interface, granting operators the flexibility to run autonomous production cycles or manually adjust critical manufacturing variables on the fly:

• Rotational Directionality: Independent configuration and toggling of the workpiece's clockwise (positive) and counter-clockwise (negative) rotation.
• Pitch and Distribution Spacing: Incremental, real-time regulation of lateral wire pitch to match varying conductor gauges.
• Spindle Velocity Profiling: Seamless acceleration and deceleration of the primary winding speed to accommodate delicate materials or high-speed runs.
