Six Spindles Automatic Stranding Coil Winding Machine

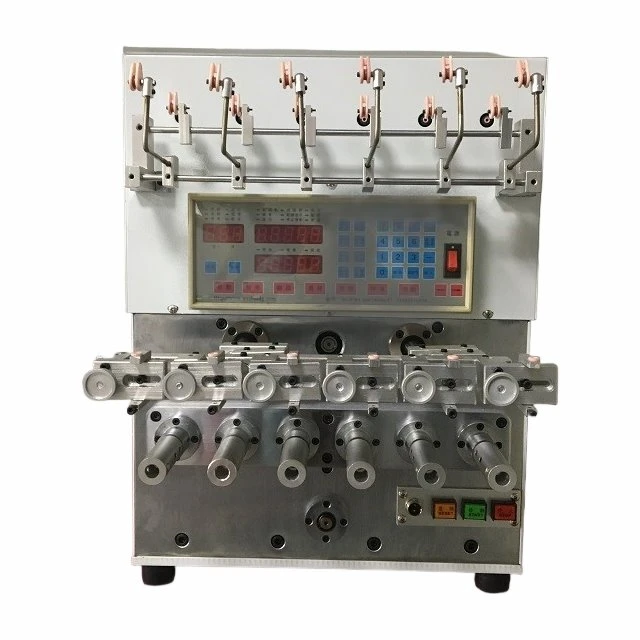

KX-988B Six Spindles Automatic Stranding Coil Winding Machine

• Multi-Axis Kinematic Execution Provides a flexible, scalable architecture configured with four to six independently controlled axes to manage highly complex winding and stranding trajectories.
• Dynamic Data Management Utilizes an onboard Flash ROM file system to store distinct, custom-named stranding recipes, enabling immediate profile retrieval and absolute data preservation during unscheduled power cuts.
• Precision Geometric Stranding Executes high-velocity conductor twisting up to 10,000 RPM, integrating a direct spindle-to-bow routing pathway that eliminates intermediate corner-guide wheels to prevent structural wire surface scratches.
• Real-Time Parameter Calibration Supports an interactive configuration framework where spooling velocities, wire-routing metrics, and manufacturing throughput parameters can be tailored via a granular 0–99 speed selection matrix.

• Minimal Human Intervention Owing to the intuitive HMI safeguards and comprehensive automated error detection, a single technician can seamlessly oversee and manage an active fleet of more than five machines simultaneously.
• Extended Component Longevity The main spindle assembly leverages a natural-circulation oil cooling and lubrication network, dramatically reducing thermal stress on critical internal nodes and lengthening the life cycle of the main bearings.
• Streamlined Product Changeovers Adjusting pitch layouts or reversing rotational directions requires only a simple physical lead-wheel swap or a single lever shift, drastically mitigating operator fatigue and minimizing setup-induced errors.
• Premium Component Sourcing Constructed with top-tier Japanese bearings and advanced high-elasticity bow bands that isolate vibrations at high speeds, alongside imported, globally recognized PLCs, frequency inverters, and electromagnetic brakes to minimize maintenance overhead.

• Intelligent Closed-Loop Tensioning Monitors and tracks the entire winding cycle from the core to a full spool, automatically scaling the take-up tension upward to maintain uniform tension across the entire coil without requiring machine downtime.
• Bilingual Diagnostics & Controls Features a centralized digital navigation interface engineered for single-handed input, backed by an automated fault-assessment module that instantly displays warning prompts if operational or programming anomalies occur.
• Lubricant-Free Synchronous Propulsion Employs a high-efficiency timing belt drivetrain that completely eliminates grease points inside the processing chamber, guaranteeing an oil-free environment for materials with strict surface purity specifications.
• Conductor Roundness Optimization Incorporates a dedicated triple-stage mechanical compression array that structurally shapes the conductor post-twist, maximizing cross-sectional roundness and reducing downstream insulation consumption.
