Voice Coil Winding Machine

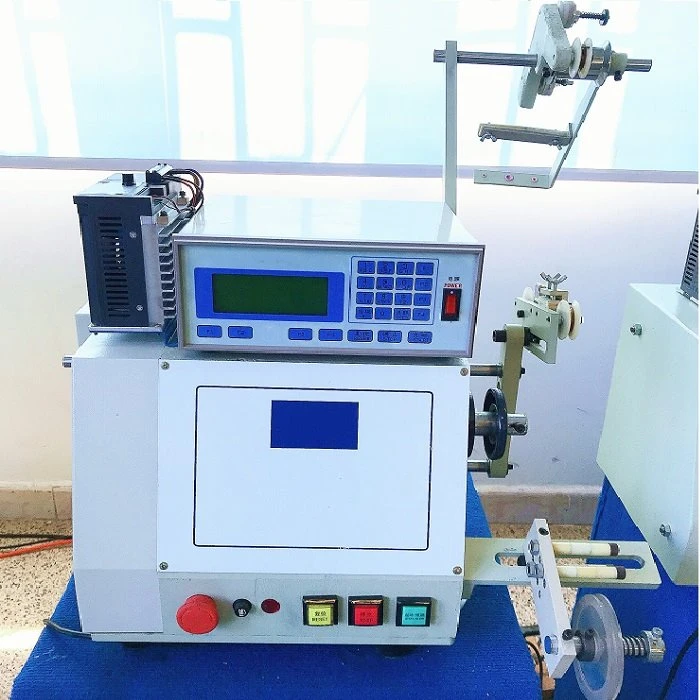

ACKX22-1A Voice Coil Winding Machine

The ACKX22-1A Voice Coil Winding Machine is an advanced, high-precision industrial processing workstation specifically engineered to automate the complex fabrication of sensitive audio voice coils. Positioned as a premier solution for acoustic component manufacturers, this specialized platform integrates a high-speed 32-bit control processing core with an intelligent mechanical tracking drivetrain. The system is designed to eliminate layer shifting and insulation friction when winding delicate, low-mass wire profiles onto thin bobbin substrates.

To ensure uniform winding density and exact layer registration under continuous factory workloads, the ACKX22-1A incorporates an advanced synchronized coupling cable controller. This architecture links the material feed path directly with spindle rotation, keeping wire tension stable across the entire processing cycle. By combining continuous mechanical calibration with programmable speed ramping profiles, the ACKX22-1A provides electronic production lines with a highly repeatable, low-maintenance manufacturing platform that enhances the acoustic consistency and field reliability of finished speaker and headphone components.

• 32-Bit Microprocessor Framework with Synchronized Coupling Control

The centralized processing network is powered by an upgraded 32-bit embedded controller chip, delivering fast calculation speeds and excellent resistance to factory noise. This processing core runs a synchronized coupling cable control loop that links lateral wire distribution with the main spindle, preventing overlapping and gaps even during rapid speed transitions.

• Real-Time Self-Diagnostics & Parameter Auditing

The control software features an integrated self-detection matrix that actively monitors production runs. This diagnostic loop scans for setting inconsistencies, tracks real-time spindle velocities, and runs automated speed calibration sequences to maintain tight technical tolerances and prevent component defects before they happen.

• Programmable Spindle Ramping & Velocity Customization

To protect ultra-fine wire gauges from sudden tension stress, the ACKX22-1A allows operators to program specific spindle startup acceleration profiles (climb time curves). The system also features an adjustable spindle lifting configuration, allowing operators to fine-tune the spindle height to match custom mandrel shapes and multi-layer configurations.

• Specialized Acoustic Tension Adjusters

The machine is equipped with a high-sensitivity tensioning module engineered specifically for speaker coil manufacturing. This mechanism cushions the wire feed path against high-speed friction and velocity spikes, improving layer tightness and ensuring a smooth finish across the entire width of the coil.

• Premium Global Mechanical Architecture

The physical drive and linear tracking assemblies are constructed using premium imported industrial components to ensure long-term structural reliability under continuous factory shifts:

Rotational Support: High-tolerance Japanese NSK and NTN precision bearings.

Power Transmission: Heavy-duty Japanese BANDO and USA GATES reinforced belts.

Linear Progression: High-accuracy Taiwan TBI ground ball screws.

Speed Regulation: High-performance Taiwan AC variable-frequency drives (VFD).

• Bilingual Display with Non-Volatile Data Retention

The user terminal features a clear bilingual (Chinese/English) display that simplifies setup and profile configurations. It includes a built-in non-volatile data memory bank that automatically locks in active turn targets and operational data during unexpected power cuts, preventing product scrap and saving valuable setup time.

The ACKX22-1A Voice Coil Winding Machine is engineered for the unique, tight-tolerance manufacturing demands of the commercial audio and consumer electronics industries. Its primary applications include:

• High-Fidelity Audio Components: Precision multi-layer voice coils for premium consumer headphones, micro-speakers, automotive audio systems, and high-performance pro-sound drivers.
• Sensitive Acoustic Transducers: Specialized low-mass coils requiring uniform winding density, tight alignment tracking, and flawless wire layer registration to optimize acoustic frequency response and minimize distortion.

Operational Category Note: Unlike specialized toroid winding equipment-which is engineered for closed-loop core processing for heavy industrial electrical parts like toroidal inductors, toroidal transformers, toroidal current transformers, power inductors, and converter chokes-the ACKX22-1A is built exclusively for linear, bobbin-based, and mandrel-mounted voice coil fabrication. Its mechanical layout and control software are optimized for delicate handling, uniform layers, and precise edge turnarounds for small-scale audio manufacturing lines.
