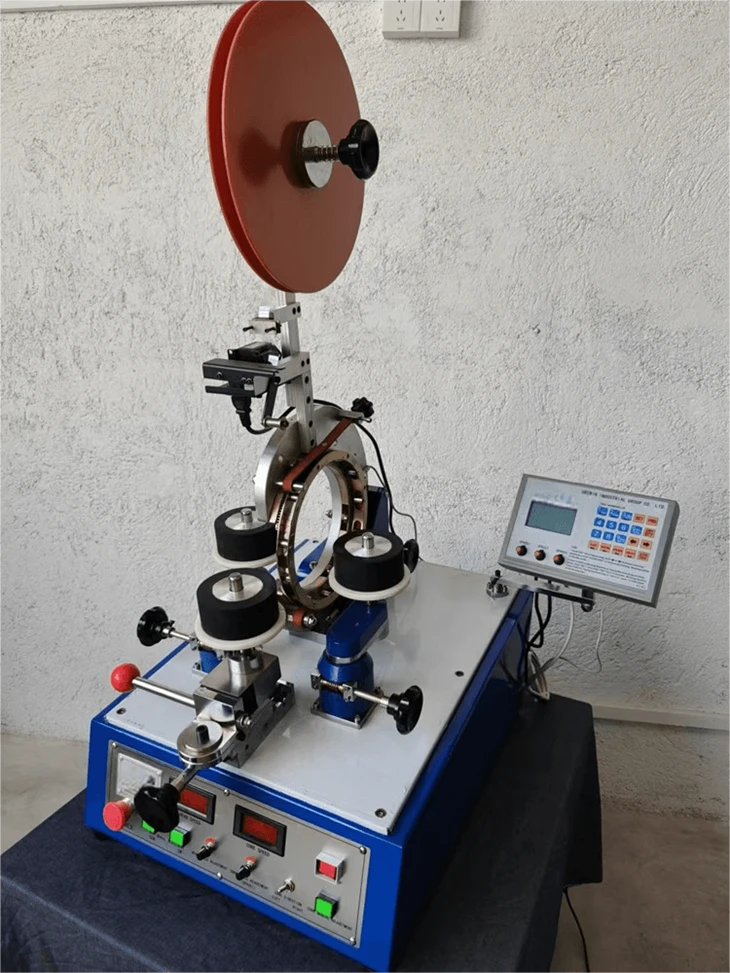

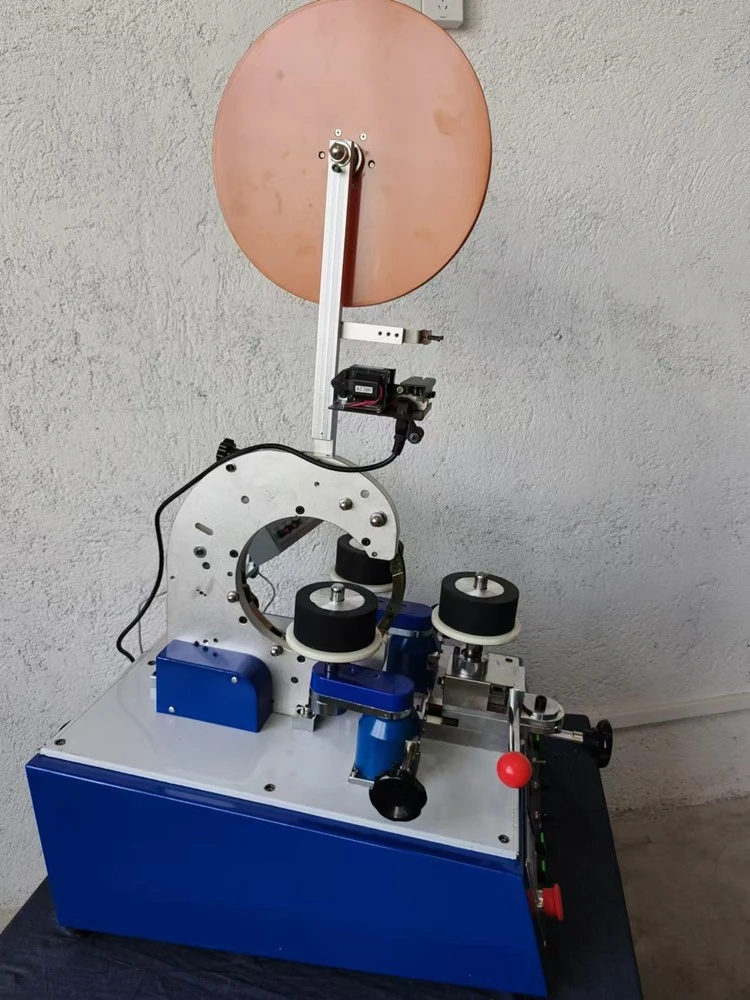

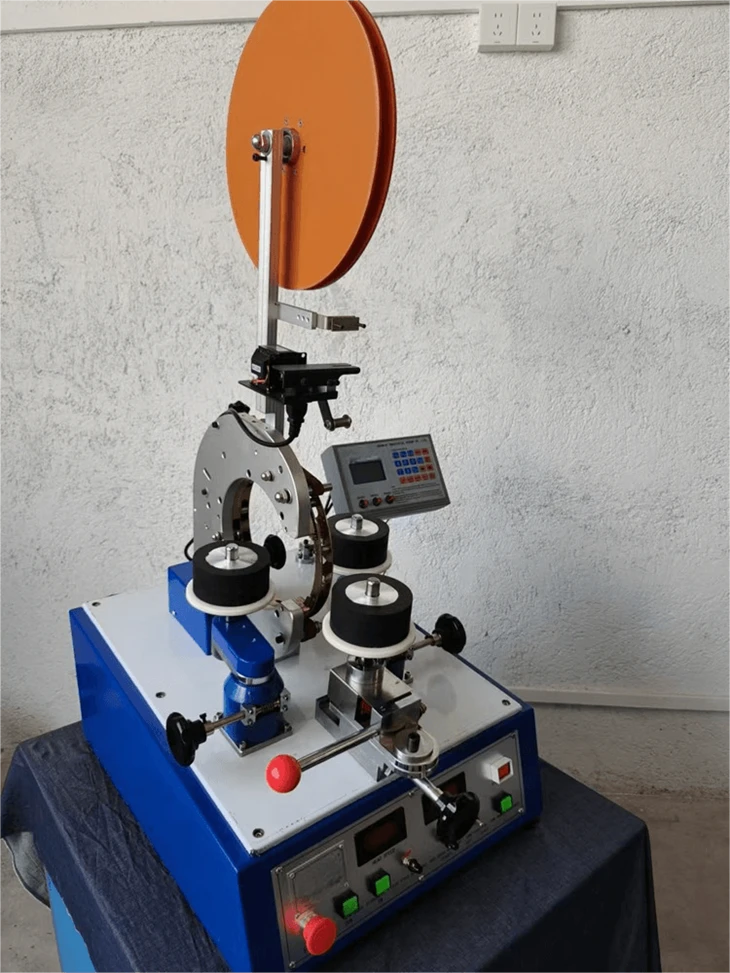

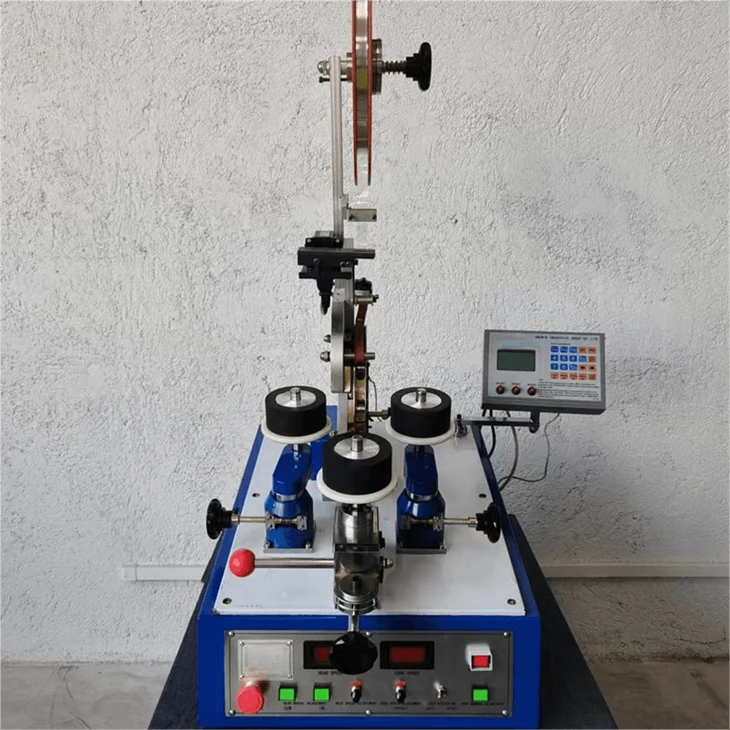

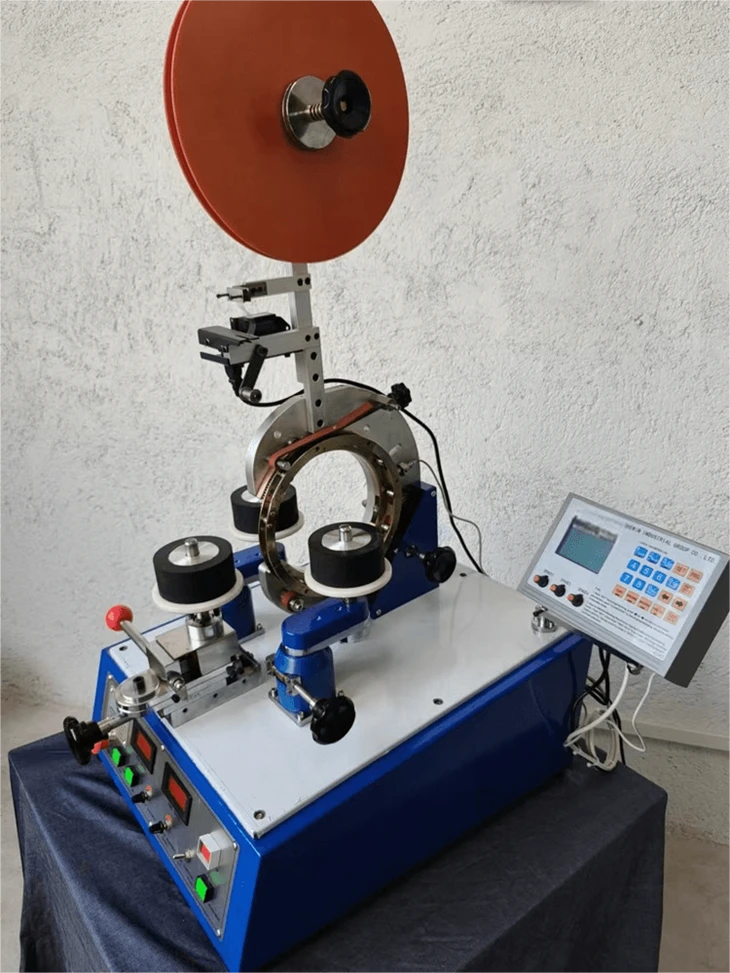

KXLT-850 Gear Type Toroidal Transformer Taping Machine
Products Description
The KXLT-850 Gear Type Toroidal Transformer Taping Machine is a heavy-duty, floor-standing production platform engineered specifically for applying high-tension insulation tape onto large toroidal transformer cores, heavy-duty inductors, and high-power magnetic rings. Moving away from light-duty friction drives, this system uses a positive mechanical gear-rack mechanism that delivers the high torque needed to process wide, dense insulation backings and heavy textile tapes without slipping.
The KXLT-850 automates the entire manufacturing cycle-including core tracking, high-speed wrapping, precise cutting, and thermal edge sealing. Its rigid mechanical frame and heavy-duty gear train allow it to apply consistent, high-pressure wrapping around bulky components, ensuring airtight, void-free dielectric insulation layers. This machine provides an exceptionally durable, high-throughput solution for heavy electrical manufacturing facilities that need to eliminate production bottlenecks, reduce material waste, and maintain strict insulation compliance on heavy-gauge toroidal assemblies.
Specification
| Tape width | 8-10-12-15mm(optional) | Max.winding speed | 260rpm/min |
| Max.final coil.O.D | 60-180mm | Perimeter Of magazine | 760mm |
| Min.final coil.I.D | 30mm | Controller storage capacity Programs | 1000set |
| Max.finalcoil height | 80mm | Mechanical dimensions | 650*500*1160mm |
| Width of magazine | 8-10-12mm(optional) | Weight | 95kg |
Features
Tape is loaded onto the magazine and cut automatically, and the winding speed of Transformer core Taping Machine increased in order to finish the job in minimum time.
The magazine of automatic tape winding machine may be exchanged in minutes to accommodate different tape widths.
Cable taping machine is controlled by gear set to precisely set the depth of tapping.
Special relay gear design for quick exchanging of pitch setting gears.
To increase the production volume, the main spindle belt is designed to be with lightly weight to reduce heat caused by motor spinning significantly.
Advantages
High accuracy: stepper motor guarantees high accuracy
The cut surface is flat: the hot knife can heat seal the cut surface of the color ribbon and the light and thin textile belt, and the sealing is smooth and free of burrs.
The blade is made of imported high-quality steel and has a long service life.
Automatic operation: just set the length and number of cuts you need, and the rest of the work is done automatically.
Application
The KXLT-850 Toroidal Transformer Taping Machine is a high-speed automatic automatic coil taping solution specialized in applying insulation tape to toroidal components, with optimal performance for toroidal inductors, toroidal transformers, toroidal current transformers, toroidal coils, toroid choke coils, power inductors, power magnetics, UPS inductors, converter inductors, heavy toroidal cores, and similar products.
Operation is streamlined: an operator places the toroidal coil on the rotating spindle, and the KXLT-850 automatically applies the precise number of insulation tape turns, secures the tape end with a specialized wiping action, and ejects the finished component-delivering consistent accuracy and reliability in every cycle.
Engineered as a highly accurate and reliable digital automatic toroid-taping machine, the KXLT-850 excels at wrapping insulation tape on both toroidal cores and windings. It is designed to operate with a wide variety of insulation tapes, including Kapton, Polyester, PEN, PVC, PPS, and most other woven and non-woven types, making it a versatile solution for diverse toroidal transformer taping needs.
