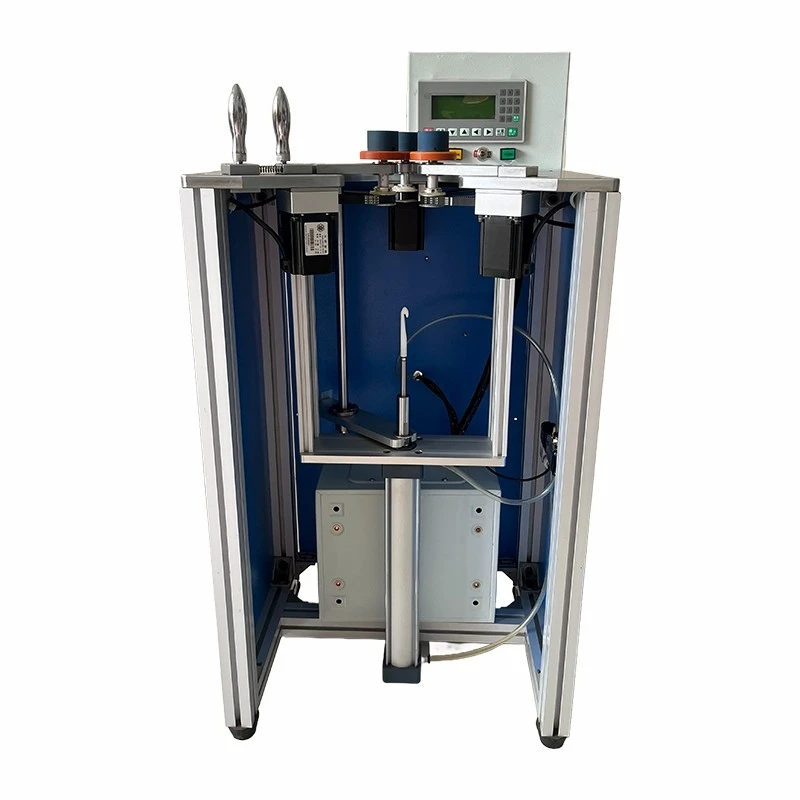

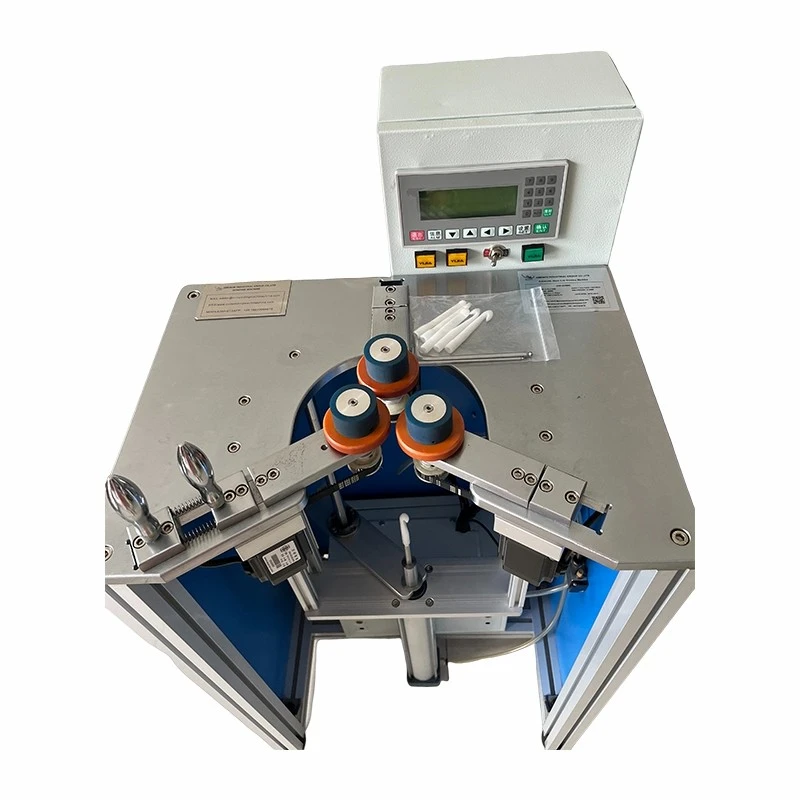

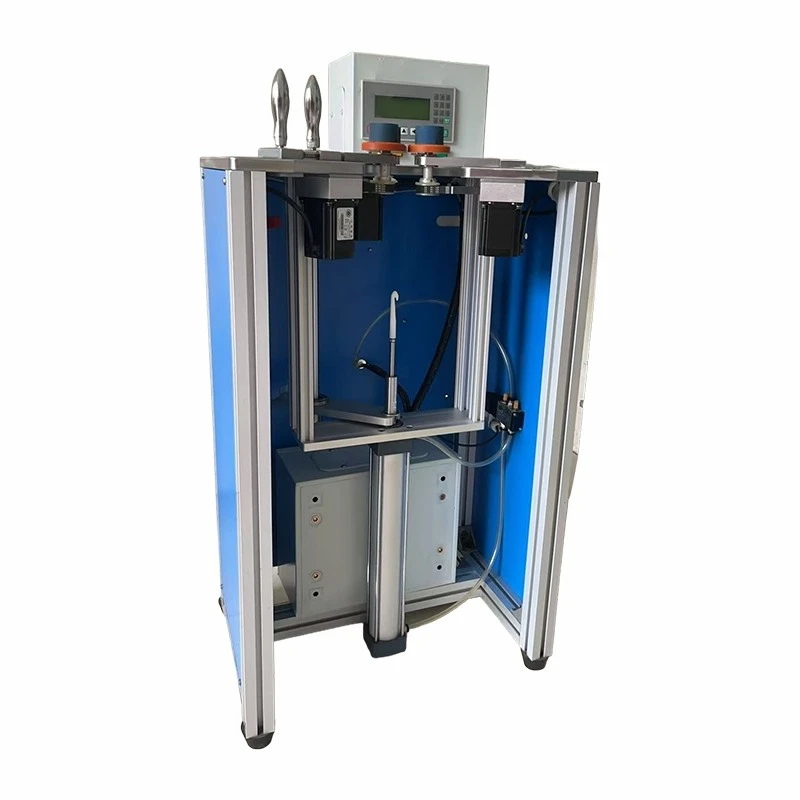

Hook-Type Toroidal Winding Machine

1. Micro-Aperture Application & Methodology Commonly recognized as the Pull-Winding technique, this system is a specialized solution for toroidal components featuring restricted internal diameters (I.D.). It is specifically engineered to overcome the physical limitations of conventional shuttle or magazine assemblies, allowing for precision winding in sub-miniature apertures where standard hardware cannot pass.

2. Pneumatic Actuation & Drive Mechanism The equipment is powered by an integrated pneumatic architecture and requires a dedicated compressed air supply. The motion logic utilizes a pneumatic cylinder to drive a precision hook in a reciprocating linear motion, drawing pre-cut wire segments through the central void of the toroidal core.

3. Programmable Operational Logic Utilizing an advanced digital control framework, the system allows for the detailed configuration of winding parameters, including:

• Vector Control: Bi-directional winding capabilities.
• Rotational Range: Precise definition of turn counts or specific angular boundaries.
• Segmented Protocols: Customizable winding angles for discrete sections of the core.

4. Precision Distribution & Spacing Wire placement is governed by a programmable logic controller, ensuring high-resolution pitch accuracy. This digital governing system eliminates manual variability, resulting in uniform wire distribution and consistent electromagnetic performance across the production batch.

5. Tooling Versatility & Sensor Calibration

• Modular Hooks: The platform supports four standardized hook geometries as part of the core assembly, with bespoke tooling available to meet non-standard industrial requirements.
• Kinetic Monitoring: The linear stroke of the pneumatic cylinder is fully adjustable, utilizing high-sensitivity magnetic induction sensors to calibrate and maintain precise travel limits for every cycle.

6. Processing Sequence The system is designed for the high-precision handling of discrete wire lengths. Each segment is pulled through the core center with calibrated force, ensuring the physical integrity of the conductor is maintained throughout the high-repetition pulling process.
