Your Professional Stranding Winding Machine Manufacturers



As a dedicated manufacturer in the wire and cable machinery industry, we take pride in producing a comprehensive range of high-performance Stranding Winding Machines. Backed by a team of skilled and experienced professionals, we ensure that every machine is rigorously tested and manufactured in accordance with international quality standards. Our commitment to precision engineering and strict quality control enables us to deliver equipment that offers superior performance, long-term reliability, and enhanced production efficiency.


The Stranding Winding Machine plays a critical role for wire and cable manufacturers. Designed for high accuracy and consistency, it significantly improves the stability and quality of cable production. With its advanced winding technology, the machine excels in winding multiple wire strands around a core, forming cables that possess exceptional strength, flexibility, and resistance to breakage.





Why Choose Us


High Quality
The programs of our machines adopt a self-developed Chinese operating system, which is well understanding and easy to operate. The mechanical structure is rational, with the main body made of fully cast components. This design delivers excellent rigidity, high speed, high precision, stable performance, and long durability.



Professional Team
Backing our product range is a team of specialist engineers with deep expertise in all facets of coil winding technology. When faced with complex or unique coil winding challenges, we consistently deliver innovative, practical solutions-ensuring our partners overcome production hurdles and achieve operational excellence.



Production Market
We maintain close partnerships with clients and collaborators across Southeast Asia, Europe, the Americas, Australia, and New Zealand. To ensure localized support, we offer on-the-ground sales, technical assistance, and after-sales service in these regions-eliminating geographical barriers and delivering timely support whenever our partners need it.



Our Certificate
Our KIOXIA LIGHT RING have ISO9001:2015, CE approvals, SGS/ IEC certificate/ EMC Certificate, Machines' Patents, "high-tech enterprises" by the government.



Benefits of Stranding Winding Machine

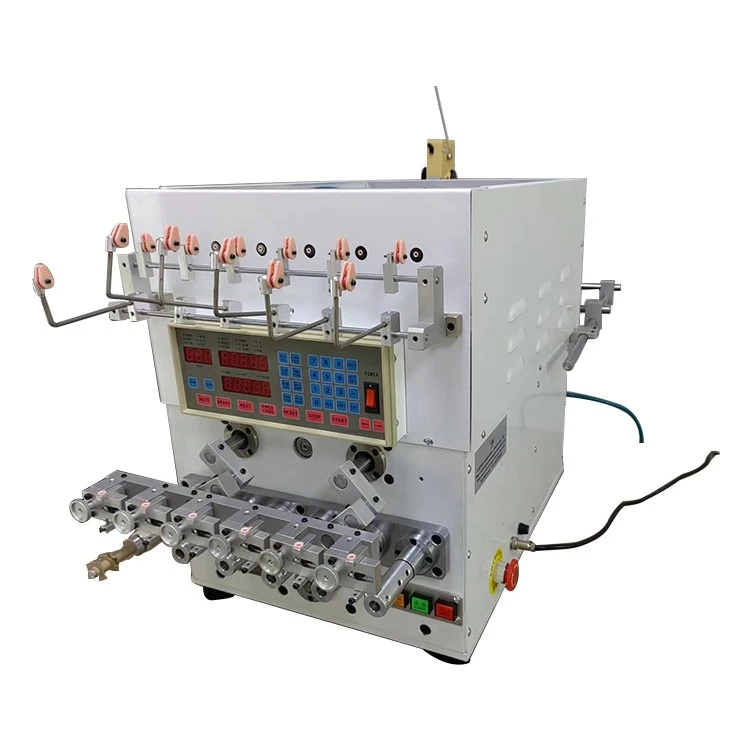

bobbin transformer winding machine with stranding function


Automatic tension control

When twisting the wire, the wire tension needs to be continuously increased when the wire is received from the bottom of the disk. The machine can automatically track and adjust the tension of the wire; the tension of the whole wire is uniform, and the machine is also The tension can be adjusted without stopping the machine.



Long service life

The main engine is oil lubrication, natural circulation cooling, effectively extend the service life of the spindle bearing. The wire-passing system adopts a new structure, and the wire is directly passed from the spindle guide wheel to the bow band, and the scratching and jumping phenomenon caused by the failure of the corner guide wheel on the aluminum disk is subtracted.

GW-988B Multi-axis winding machine
GW-988B Multi-axis winding machine


Easy to clean

The whole machine adopts synchronous belt transmission, there is no lubrication point inside the machine, the machine is cleaned, the stranded wire is free of oil, and it is suitable for conductor stranding of various types of surface cleanliness.



Easy to operate

Adjusting the lay length only needs to replace one take-up wheel. Adjusting the twisting direction only needs to pull the reversing rod to operate simply, thus reducing the operator's error rate and working intensity. The whole machine bearings are all well-known brands in Japan.

Six Spindles Automatic Stranding Coil Winding Machine



Specifications


Model

KX-988B

Supply voltage

220V50/60HZ

Winding motor

Brushless 400W6000RPM

Speed

10000RPM

Number of shares

3-19 (odd 0DD-NUMBER)

Wire diameter

0.01~0.25mm

Stranded length

130mm-300mm

Number of twisted coils

(Density) 1-999T

Stranded motor

AC200W servo motor

Machine weight

75kg

Machine size

80*53*1500 mm





Production Process
  • Cutting
  • Bending
  • Sawing
  • Driling
  • Lathe
  • Milling
  • Welding
  • Assembly
  • Testing
  • Shipping
bobbin transformer winding machine with stranding function





Packaging/Shipping



productcate-666-492





FAQ



Q: How can i install my machine when it arrives?

A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines

Q: How could find the most suitable machine?

A: Tell us your request in details: inlet wire and out wire diameter range, production capacity.

Q: How could find the reliable supplier?

A: 1)Check the background information which is assured and certificated.
2) Visit the factory, have a face to face meeting.

Q: Why there are big differences price between different suppliers?

A: After visiting factory, compare the price based on same quality and service.

Q: How does your factory do regarding quality control?

A: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.

Q: Can you make some change for me for my own design?

A: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q: How could l get a sample?

A: Before we received the first order, please afford the sample cost and express fee. We wilreturn the sample cost back to you withinyour first order.

Q: Whether you could make our brand on your products?

A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

Q: What is your payment?

A: We accept T/T,L/C Westem union or to be negotiatedDon't womry about anything, if you have any problems, please feel free to contact us.

Q: How can we make sure about the machine quality after placing the order ?

A: Before delivery , we will check the stability of machine and share you the testing videos until you are satisfied . We will setting all the parameters well And also you can arrange for quality checking by yourself or by your contacts in China.

We're professional stranding winding machine manufacturers and suppliers in China, specialized in providing high quality customized machines. We warmly welcome you to buy high-grade stranding winding machine in stock here from our factory.

Six Spindles Automatic Stranding Coil Winding Machine, stranding winding machine
