Fully Automatic Winding Machine for Flexible Coils

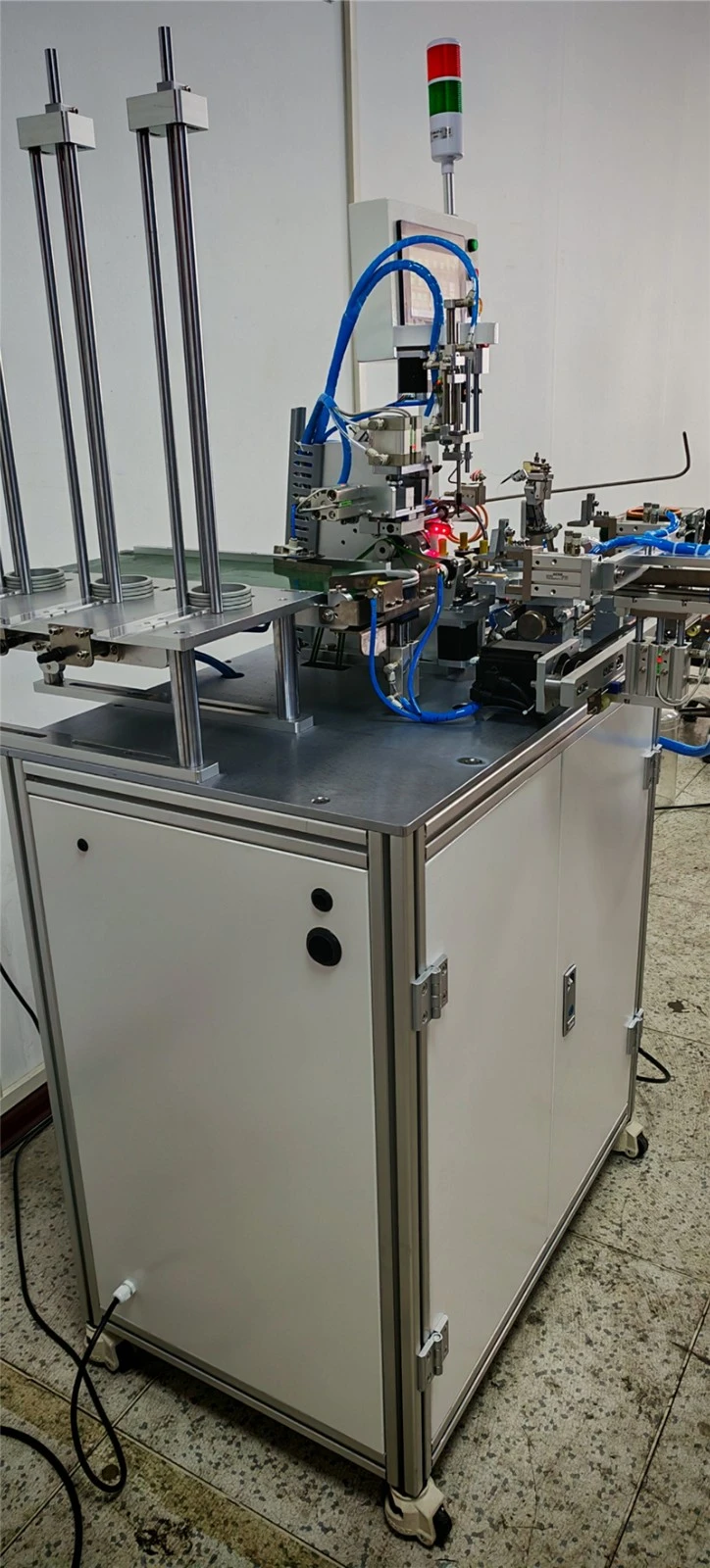

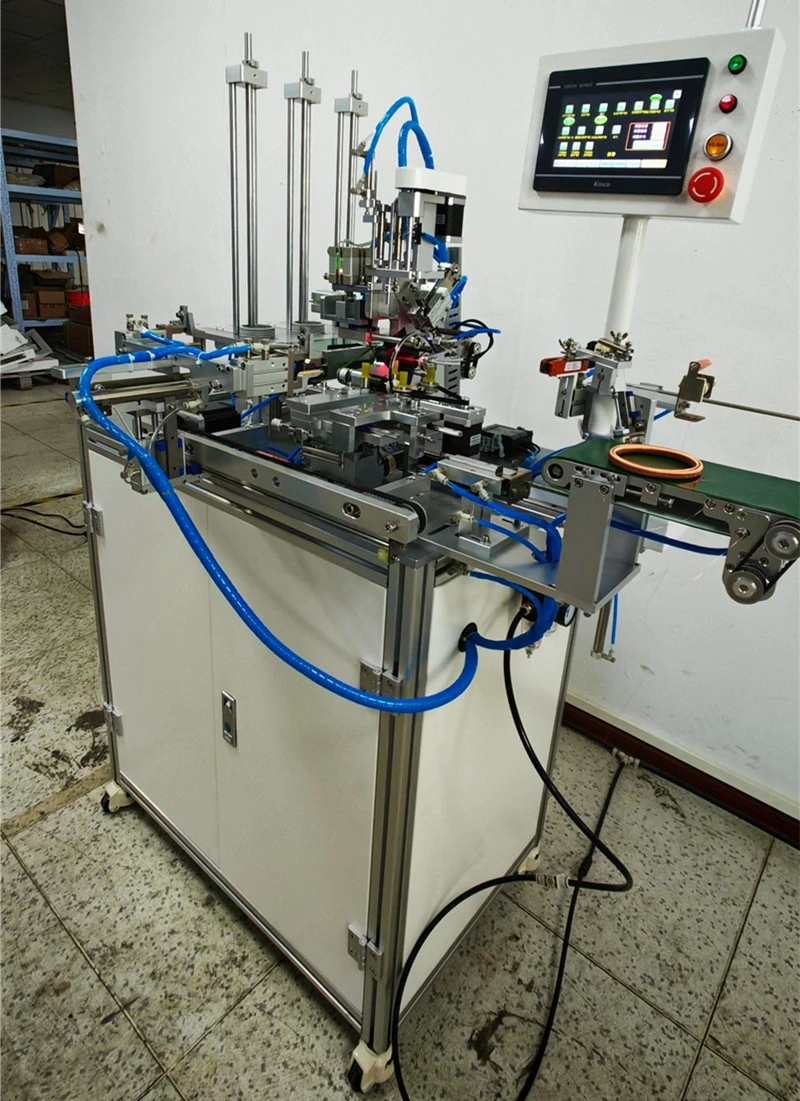

KX-7004-01R Fully Automatic Winding Machine for Flexible Coils

1. Smart HMI & System Management: Centralized via a PLC framework, the device emphasizes streamlined workflow management across diverse toroidal coil sectors. This infrastructure accelerates commissioning and simplifies routine upkeep, facilitating rapid operational mastery for entry-level staff through condensed instructional modules.

2. Component Modularity & Kinematic Excellence: The hardware architecture supports standalone hot-swapping of magazines and pulley guides to align with varied workpiece dimensions. Constructed on a space-efficient vertical frame, the unit employs high-dynamic servo actuation to maintain jitter-free, ultra-precise positioning. Mechanical endurance is underwritten by the adoption of globally recognized, high-grade transmission sub-assemblies.

3. Bespoke Fabrication Sequences: The equipment logic is programmable for specialized winding topologies, such as reverse-direction winding and secondary-stage conductor buffering, customized to individual project parameters.

4. Proactive Error Mitigation: An integrated supervisory circuit monitors all process variables, triggering an instantaneous shutdown and audible/visual alert upon detecting any variance. Analytical fault data is logged and projected on the interface to expedite corrective interventions.

5. Engineered-to-Order Tooling: Core mechanical interfaces, notably the storage magazines and guiding tracks, are custom-machined and synchronized to the specific technical metrics required by the end-user.

6. Automated Recipe Diversification: The processor's multi-profile storage capacity allows a single machine to transition between disparate product types seamlessly. Utilizing dual-pulse signal feedback for both the loading and spooling phases, the system maintains exacting tolerances through embedded metrology sensors.

7. Proprietary Technology Rights: The unique mechanical configurations and automated methodologies housed within this system are legally secured under a comprehensive portfolio of utility and invention patents.

1. Expert Technical Support: Our service team comprises senior engineers with over a decade of industry expertise, each having completed advanced technical certification. This ensures professional resolution of complex mechanical and system-level contingencies.

2. Operational Guidance & Consultancy: We provide comprehensive instruction on the precise operation and preventative maintenance of our CNC winding systems. Furthermore, clients have access to complimentary technical advisory services regarding electronic product manufacturing and process optimization.

3. Multimodal Training Resources: To ensure seamless equipment utilization, we offer structured training via technical English documentation, instructional video modules, and real-time remote support, covering every aspect of system deployment and routine service.
