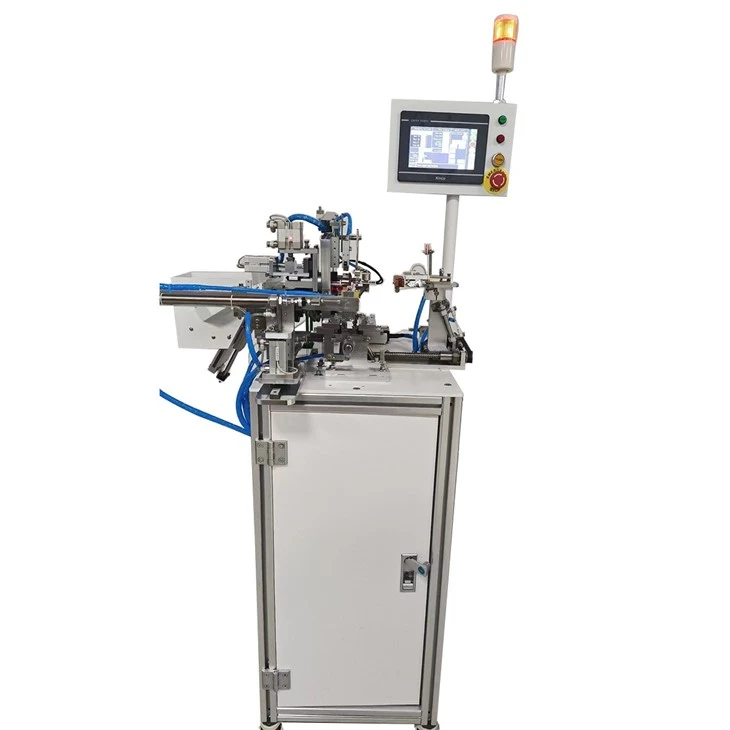

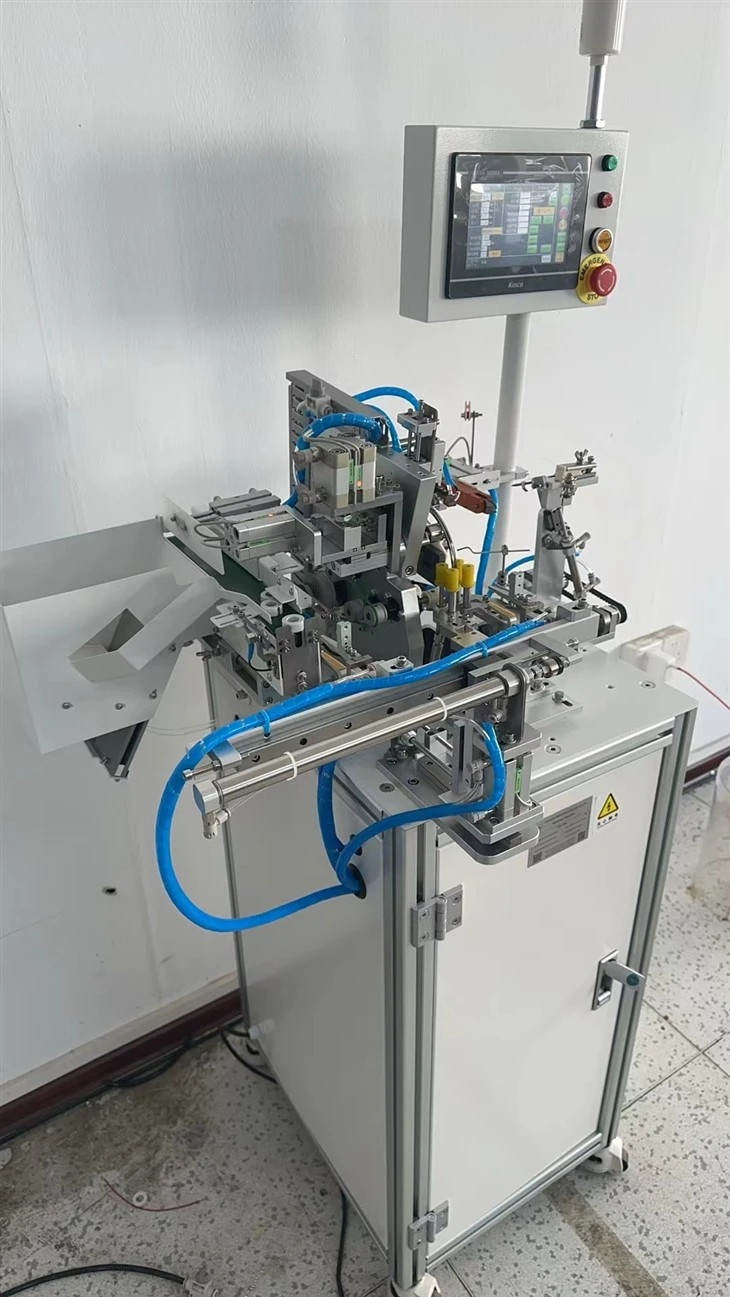

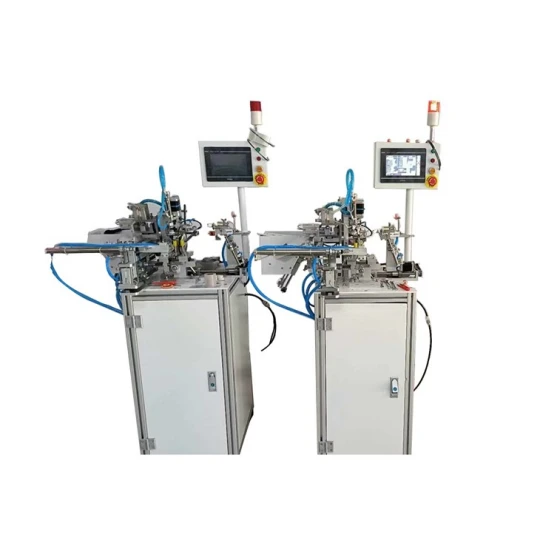

Fully Automatic Armature Winding Machine

1. Streamlined Control via PLC-HMI Framework Utilizing a centralized PLC-driven interface, this equipment transforms sophisticated winding logic into an accessible operational workflow. The control architecture is engineered to reduce the technical barrier for entry, allowing personnel to achieve full operational competency following minimal orientation. By digitizing parameter management and process supervision, the system mitigates risks associated with manual oversight, thereby optimizing resource allocation and reducing organizational training expenditures.

2. Precision Kinematics and Throughput Optimization The integration of high-performance servo actuation ensures vibration-free and exacting mechanical motion during every cycle. This automated approach eliminates the variability inherent in manual processing, delivering superior uniformity in winding tension and conductor alignment. Beyond ensuring exacting tolerances, the system's high-velocity capabilities represent a multi-fold increase in output compared to traditional methods, providing a robust solution for high-volume manufacturing environments.

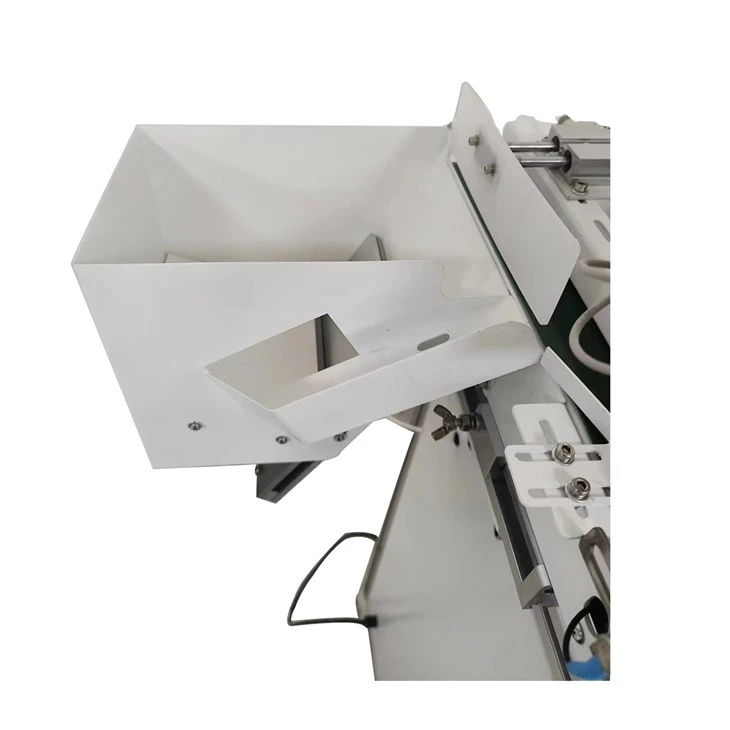

3. Versatile Compatibility for Complex Coil Geometries The apparatus features an adaptable hardware design that permits the standalone exchange of magazines and guiding assemblies to suit diverse workpiece profiles. This modularity enables the machine to pivot seamlessly between varying conductor gauges and toroidal dimensions without requiring external technical intervention. Such versatility makes it a critical utility across the telecommunications, automotive, and power electronics sectors, consolidating multiple production capabilities into a single, high-flexibility platform.

4. Industrial Resilience and Premium Sub-assemblies Engineered for industrial-grade durability, the system incorporates transmission hardware and standardized components sourced from globally recognized suppliers. The space-efficient, bench-integrated chassis is designed for maximum structural dampening, which preserves alignment and reduces component fatigue during prolonged duty cycles. This focus on structural integrity ensures consistent uptime and safeguards the production line against unscheduled maintenance events.

5. Simplified Lifecycle Management and Serviceability The design philosophy prioritizes ease of deployment and streamlined preventative maintenance. With a modular internal layout, critical service points are easily accessible for routine inspection, lubrication, or component replacement. This "maintenance-lean" architecture accelerates the commissioning phase and minimizes long-term operational overhead, ensuring a rapid return on investment through sustained machine availability.
