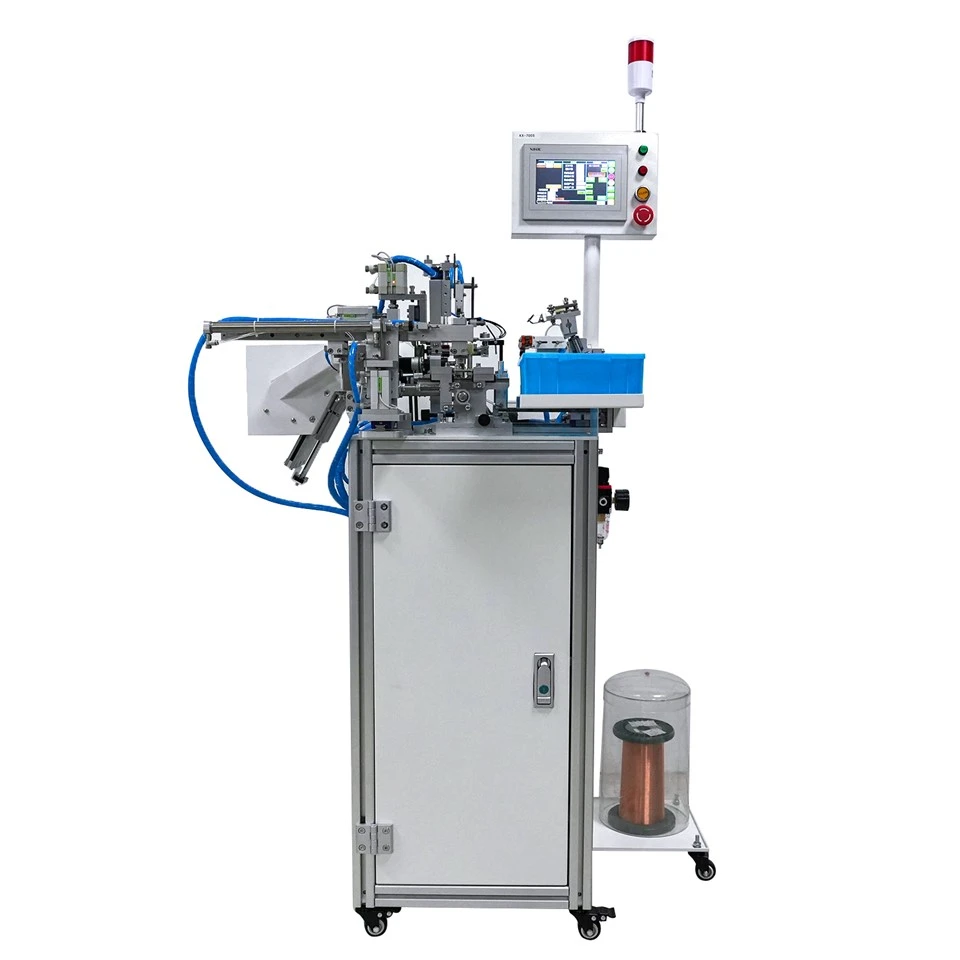

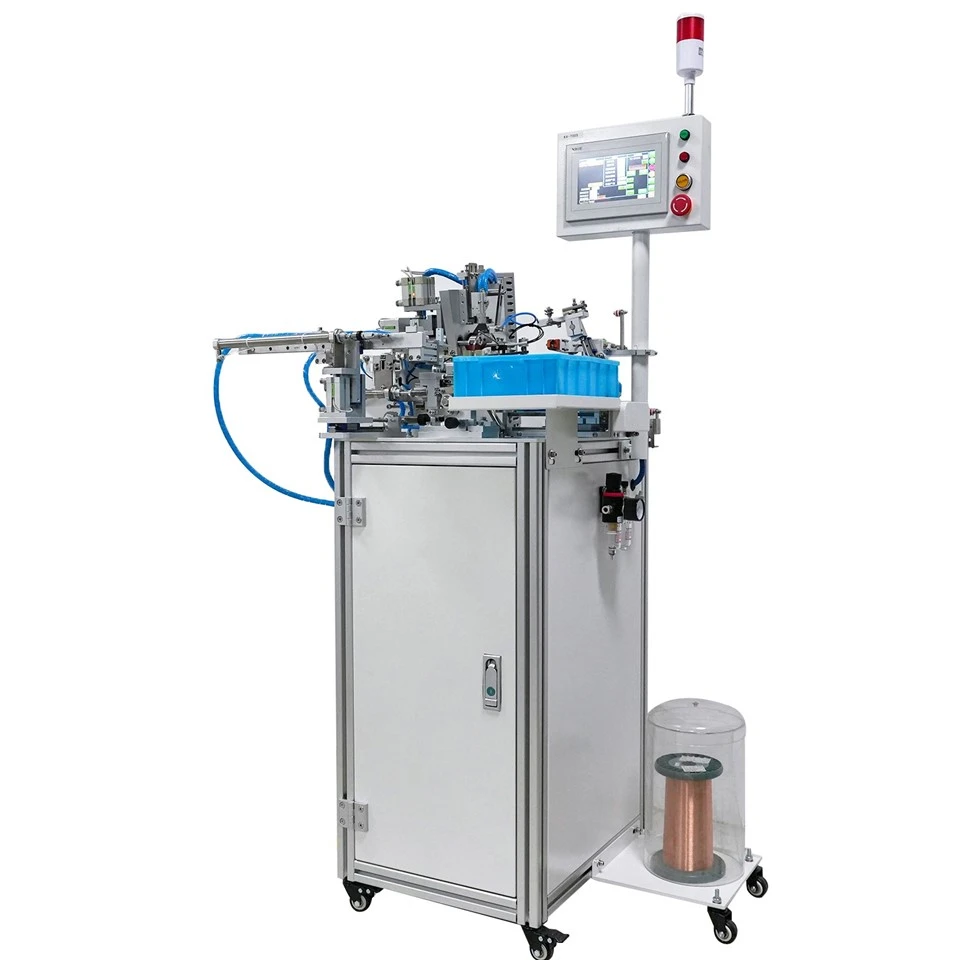

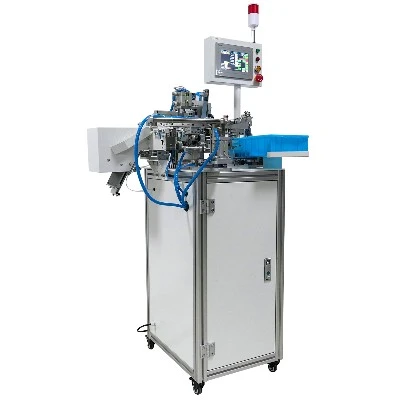

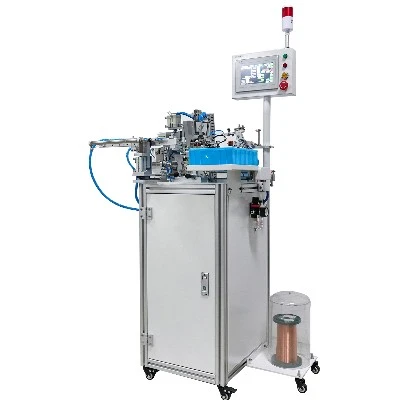

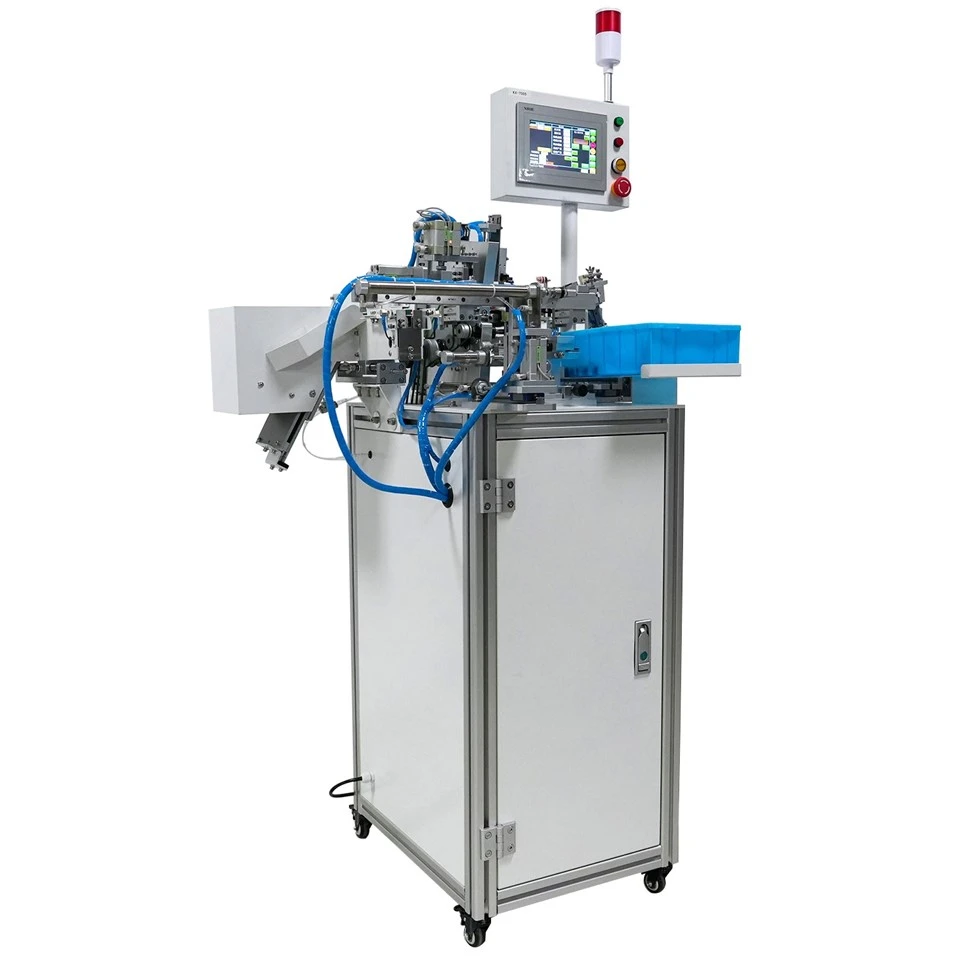

High Precision Multi-spec Toroidal Transformer Winding Machine

The KX-7005 High Precision Multi-spec Toroidal Transformer Winding Machine is an advanced, computer-controlled production workstation engineered for the high-volume, automated winding of circular magnetic cores. Featuring a heavy-duty side-sliding mechanical framework, this platform provides excellent geometric flexibility and structural stability when handling fine to ultra-fine wire gauges ranging from 0.05 mm to 0.35 mm.

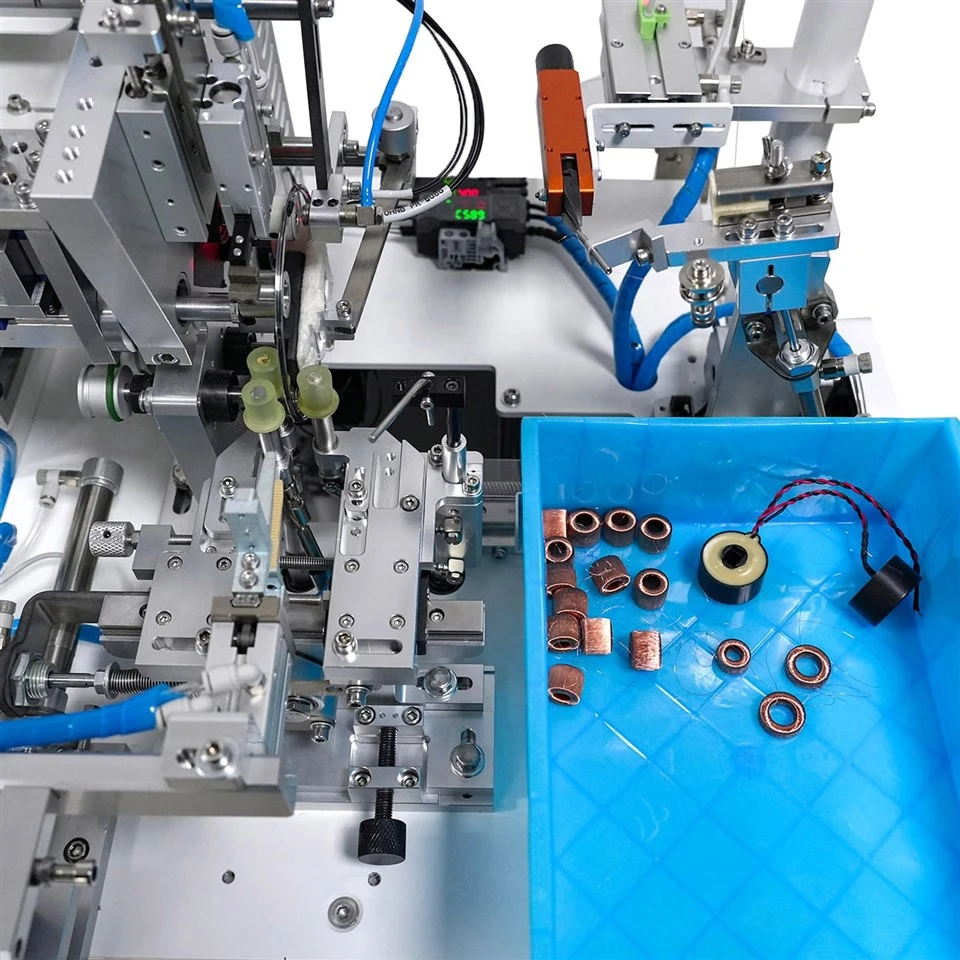

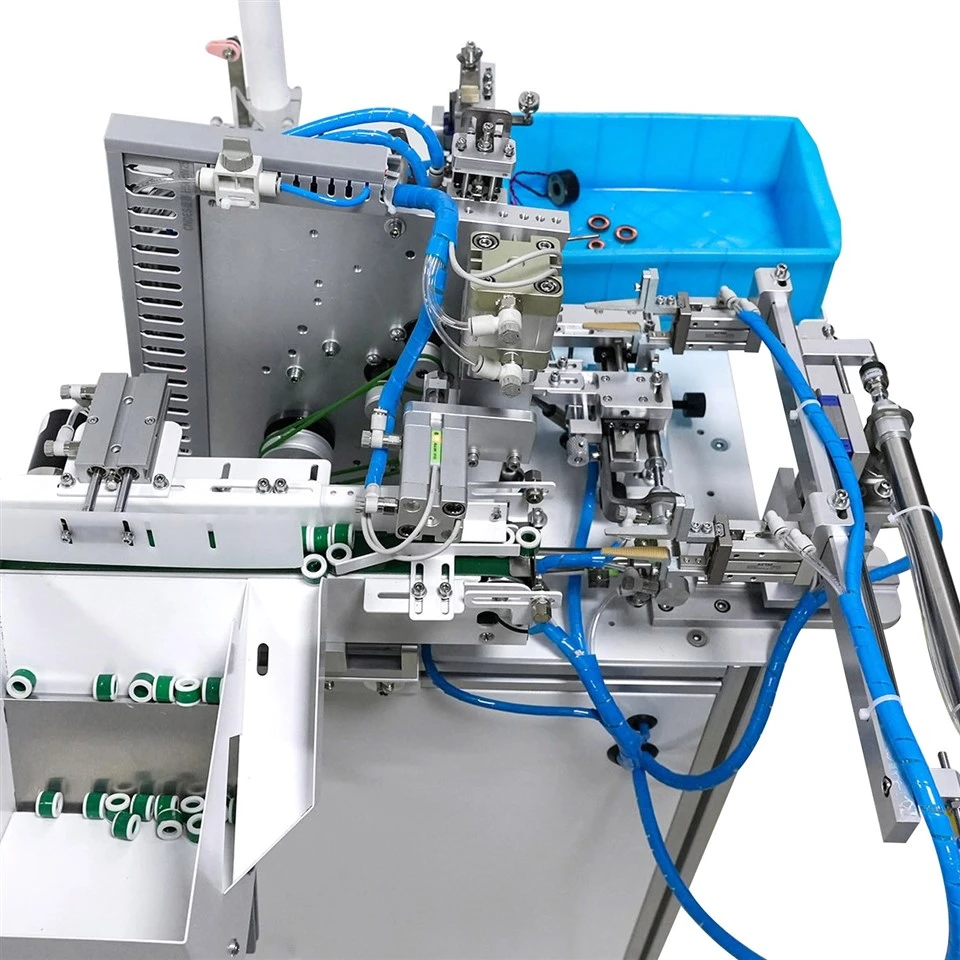

The KX-7005 integrates a powerful dual-motor drivetrain-combining an AC servo spindle motor with a high-torque hybrid stepping traverse drive-to execute precise, uniform wire layer distribution with zero overlapping. The adjustable sliding magazine assembly adapts quickly to varying toroidal core profiles, eliminating the need for complex, time-consuming modular tooling swaps. Designed for continuous factory operation, this machine automates wire feeding, pitch indexing, and absolute turn counting within a single closed-loop sequence. This provides power electronics manufacturers with a reliable, standalone cell that reduces operator error, maximizes coil packing density, and ensures consistent electrical performance across every component.

Sliding Type Stable StructureOptimized side sliding frame design bears operation pressure evenly, long-term continuous working without deformation. Good compatibility for multiple toroidal core specifications, strong adaptability to diversified production orders.

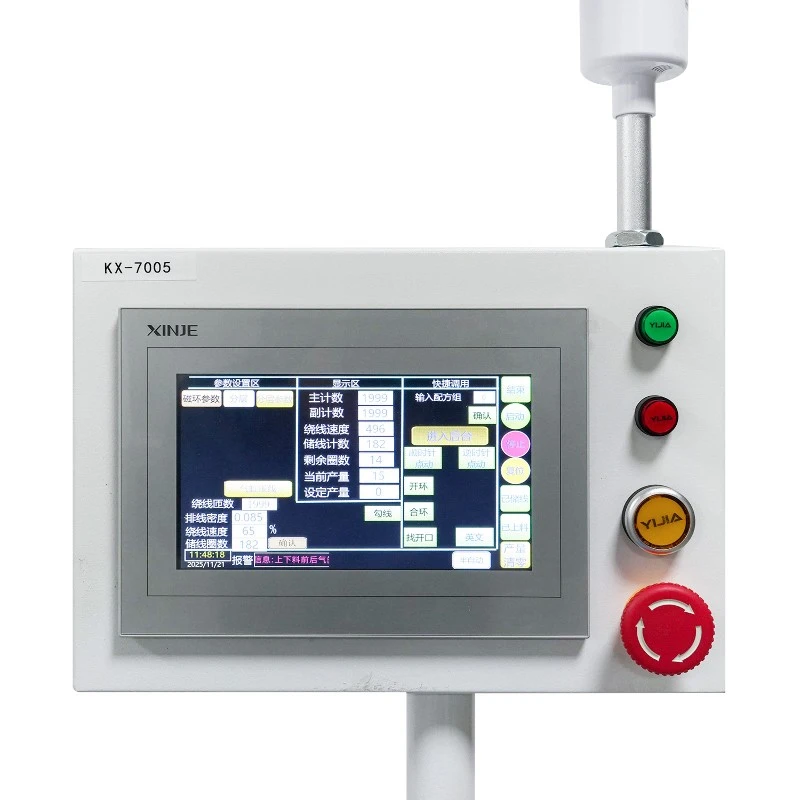

Full Automatic Intelligent OperationCNC programmable control panel supports parameter preset and memory storage. Automatic wire feeding, winding forming and turn counting reduce manual intervention, effectively lower labor cost and operation error rate.

High Precision Winding EffectAccurate turn control and neat wire arrangement guarantee uniform coil density. Finished coils own stable electrical performance, fully satisfy strict quality standards of power electronic components.

Wide Application ScopeCovers common wire diameter and core size range, perfectly fit industrial power transformers, audio toroidal transformers, common mode inductors and anti-interference coils.

Easy Maintenance & Long Service LifePremium mechanical accessories and protective circuit design extend service lifespan. Simple internal layout facilitates daily inspection and routine maintenance, minimizing production downtime.

This slider type automatic toroidal winding machine serves electronic manufacturing factories, electrical equipment workshops and new energy component producers. It is the preferred processing equipment for medium and large batch toroidal coil production, trusted by manufacturers from multiple regions for reliable performance and cost-effective value.
