KXM70 Toroidal Transformer Coil Winding Machine

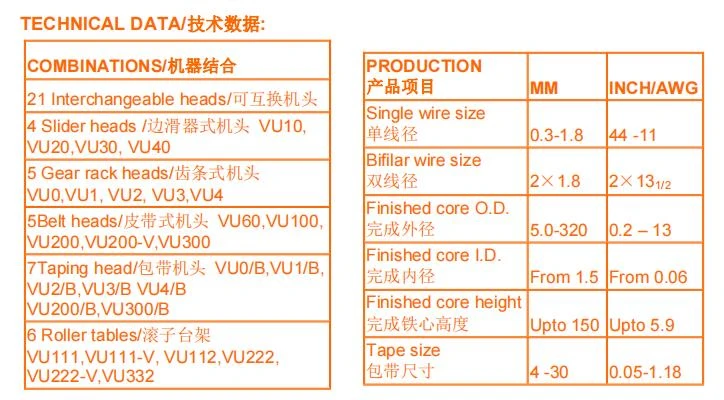

Specification

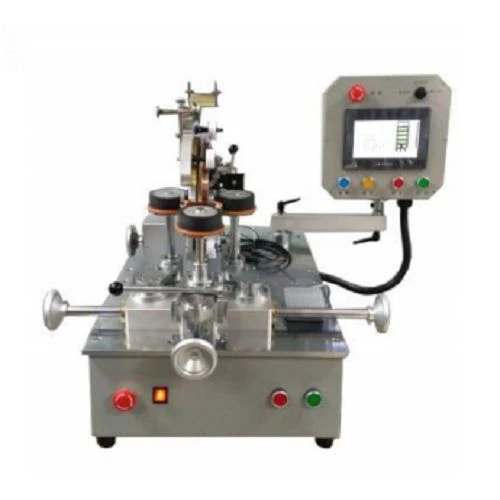

Machine Introduction
The KXM70 is a versatile, high-precision benchtop winding platform featuring a modular architecture that supports interchangeable heads and roller tables for maximum adaptability. Driven by a high-performance servo-stepper motor synchronization, the system ensures absolute motion accuracy, managed via an intuitive PLC interface and a 4-line LCD that streamlines programming through clear-text commands. Designed with integrated PC connectivity, the KXM70 provides a robust solution for a wide range of industrial applications, from standard insulation taping to sophisticated, high-tolerance winding tasks.
Machine Features
1.Controller
Plc Control With Software
Languages: En.Ch./ Plc
2.Display
Lcd-Display With Background Illumination: Continuous Read
Out Of Operation Details
3.Presets
60 Programs,
Each Program Contains Of 8 Sequences
4.Programming
User Friendly Text Commands
5.Data Memory And Output
Interfaces For Pc
Interface For Software
Updates/Pc
6.Winding Speed
Up To 1800 Rpm
Separately Programmable Load Speed
Separately Programmable Wind Speed
7.Core Drive
Stepper Motor 0,30 Kw
8.Wire Pitch Control
Fully Automatic Pitch Change, Programmable In Steps Of 0,001mm
9.Core Index & Reverse Control
Fully Automatic
10.Acceleration & Decelleration
Fully Automatic
11.Stops For Taps
Automatic
12.Sector & Bank Winding Control
Fully Automatic
13.Winding Head Drive
Servo Motor 0,8 Kw
14.Taping Operation
Fully Automatic
15.Supply Voltages
230 ( 110 And 240) Volt, 50 Hz Ac
16.Machine Size And Weight
800×700 Mm 110 Kg Net, 130 Kg Gross
Packaging
Factory
