Specification：
|
Machine head completed parameter |
KX3B-L |
|
Tap width range |
9-25MM |
|
Inner diameter of the tape magazine |
241MM |
|
Max finished O.D |
40-150MM |
|
Min finished I.D |
29 |
|
Max finished Height |
90 |
|
Max speed |
150 |
|
Fixture |
KX-99T-V |
|
Motor |
Servo motor |
The different taping magazine ring need to be replaced.

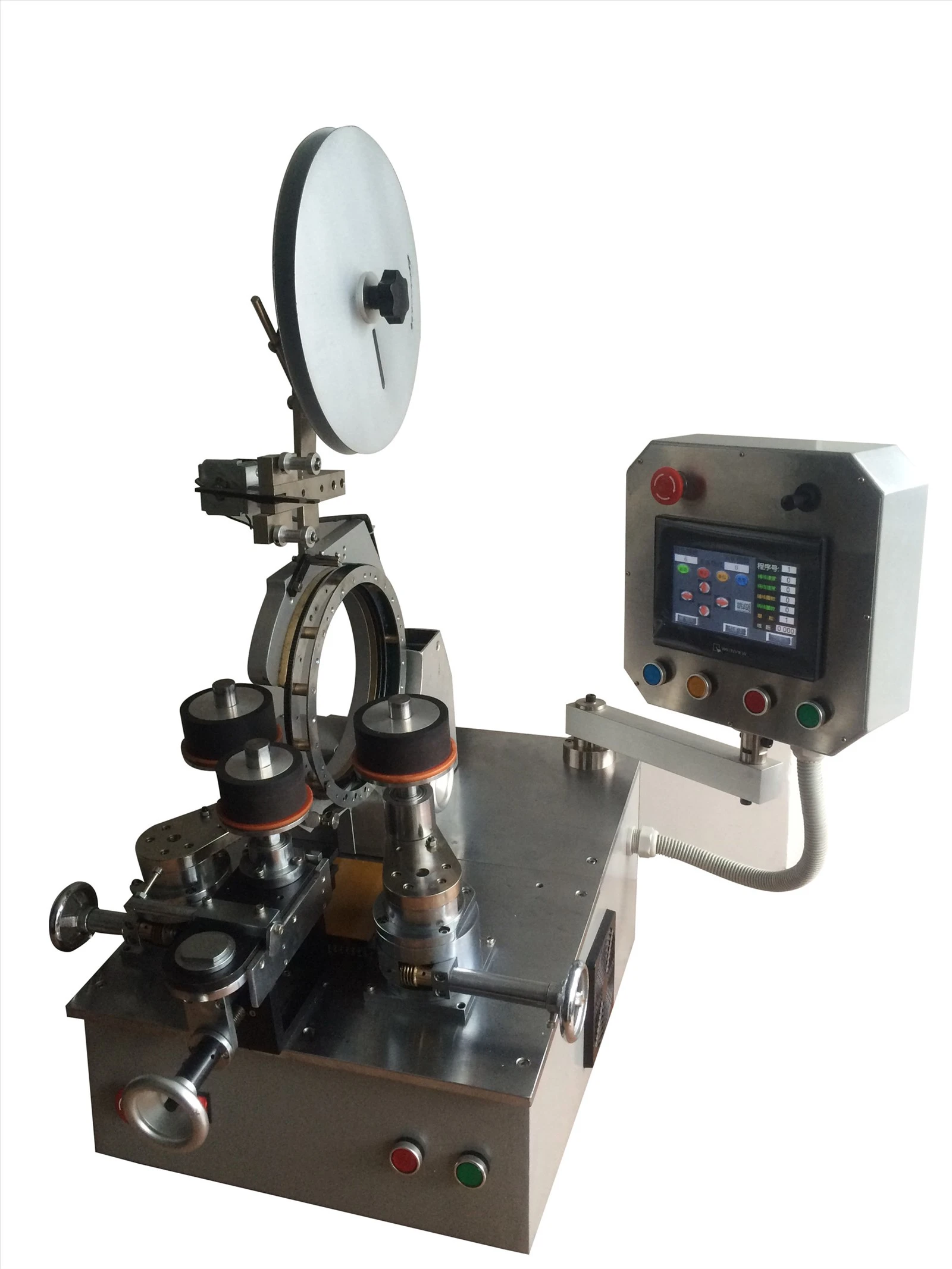

High precision Toroidal Transformer Taping Machine Advantages：
1.the brand-new PLC + touch screen control system, manufactured in Germany,
2.1000W servo motor, ensuring 100% accuracy of the number of rotations,
3.the maximum rotational speed of the machine head can reach 150rpm;
4.The 86 stepper motor ensures exquisite wiring;
5.fully automatic/manual settings for the forward and reverse rotation direction of the product; fully automatic/manual control of the wire spacing; fully automatic/manual adjustment of the winding speed;
6. Toroidal Taping Machine can achieve the packaging of adhesive tape and polyester film.
Application Range
The Semi-auto Taping Machine is widely used in:
Toroidal transformer manufacturing – for precise and efficient insulation taping of toroidal coils.
Inductor and choke coil production – suitable for high-precision coil winding and insulation.
Electric motor assembly – ensuring consistent taping of motor stators and rotors.
Power electronics components – for taping high-frequency coils and magnetic components.
Automation production lines – integrating into semi-automatic or fully automated coil assembly systems.
Research and development labs – for prototype coil insulation and small-batch production.
Advantages & Features
PLC Control System – provides precise, programmable operation for high efficiency and repeatability.
Servo Motor Driven – ensures accurate winding speed and tape positioning.
Semi-Automatic Operation – combines automation with manual flexibility for small to medium batch production.
Adjustable Tension Control – maintains consistent tape tightness, preventing coil damage.
High Precision Layer Counting – ensures uniform insulation layers for quality coils.
User-Friendly Interface – touch screen operation for easy programming and monitoring.
Flexible Tape Compatibility – works with various insulation tapes for different coil sizes.
Durable and Reliable Design – minimizes maintenance and downtime in production environments.
