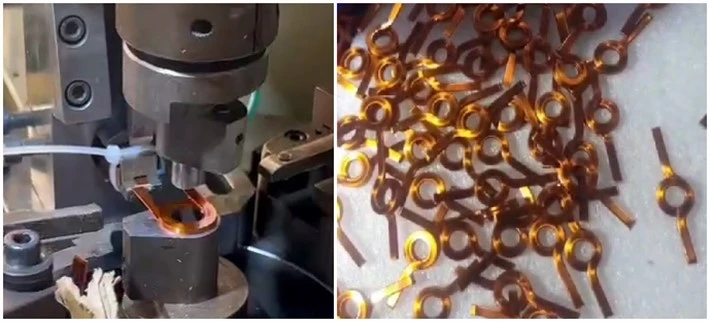

Flat Wire Vertical Winding Machine

Name: Flat wire vertical winding machine

Modle:

Unfolded working size Length * Width * Height

3000*1000*1600

Machinable section

<10 square millimeter

Machine weight

550KG

The largest aspect ratio

less than 20 times (wire width divided by thickness)

Input voltage

single phase 220V

Minimum wire thickness

greater than 0.1mm

Rated power

2.9KW

Maximum wire thickness

less than 2mm

Operating pressure

0.6≤P≤1.0MPa

No.

Product Name Specification

Brand

Model Specifications

Quantity

Remark

1

Machine Body

KIOXIA LIGHT RING

1 SET

2

Servo Motor

DELTA

0.9KW

1 SET

X Axis

3

DELTA

1.0kW

1 SET

Y Axis

4

DELTA

1.0kw

1 SET

Z Axis

5

Computer Controller

YONGHENG

Controller

1 SET

8 Inch Screen

6

The Electromagnetic Valve

AIRTAC

210-08

4 SET
