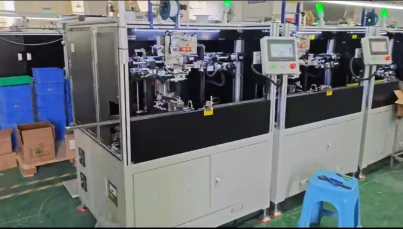

KXX-70 Single Spindle Tube Winding Machine
1. Product Features
- The machine features a concise and reasonable structural design. All key standard accessories are imported from top international brands, ensuring fast operation, high precision, excellent stability, and strong rigidity, while greatly extending the service life of the equipment.
- Square-through welding ensures the equipment will not deform during high-speed operation and enhances the overall stability of the machine.
- High-quality (HIWIN) linear guideways and precision ground ball screws (TBI) guarantee the positioning and repeat positioning accuracy of the machine.
- Every step of the high-speed spindle assembly undergoes strict quality control, delivering high rotation speed, low noise, long service life, and a maximum spindle speed of up to 5000rpm.
- The human-machine interface allows technical personnel to modify or write programs, enabling easy and convenient adjustment.
2. Product Specifications
|
No. |
Item |
Specification |
|
1 |
Machine Model |
KXX-70 |
|
2 |
Number of Winding Axes |
1 |
|
3 |
Number of Spindles |
1 |
|
4 |
Machine Winding Cycle (sec) |
Approx. 10S (subject to specific process requirements) |
|
5 |
Wire Diameter Range |
Standard single wire: 0.15-1.2 (mm) |
|
6 |
Max. Spindle Speed (r/min) |
Standard: 6000r/min (supports 3000-6000r/min) |
|
7 |
Spindle Travel Range |
X:200 Y:200 Z:180 |
|
8 |
Double Wire Guide Lead Angle |
Standard: 0°~360° |
|
9 |
Double Wire Guide Travel Range (mm) |
X: 90 Y: 90 Z: 250 S:360° |
|
10 |
Applicable Bobbin Size (mm) |
2 ~ 80 (suitable for horizontal and vertical bobbins) |
|
11 |
Number of Motor Axes |
15 |
|
12 |
Power Supply Voltage |
AC220V/50HZ (single-phase power supply) |
|
13 |
Machine Power |
1.5KW |
|
14 |
Equipment Stability |
0.95 |
|
15 |
Equipment Weight (KG) |
600kg |
|
16 |
Equipment Dimensions (mm) |
1150W1500L1750H |
Factory
Founded in 1993, KIOXIA LIGHT RING EQUIPMENT GROUP CO.,LTD. has been a well-known manufacturing excellent performance winding machines together with associated production and technology. KIOXIA LIGHT RING provide highly cost effective manufacturing solutions for the production of the wound components of all types such as transformers,chokes etc.
