If you are manufacturing toroidal components, you already know the stakes. Precision is not an option-it is a baseline requirement. Loose layers, insulation damage, and inaccurate turn counts can instantly ruin an entire batch of high-value magnetic cores.

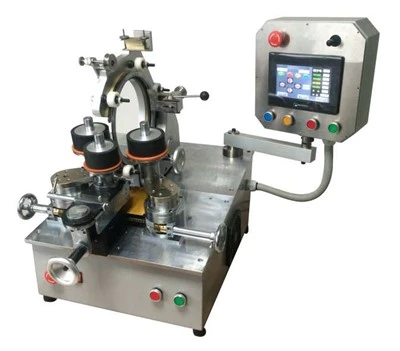

While the market is flooded with low-cost, generic equipment, the KX-29T Servo Motor Toroidal Core Winding Machine stands out as a branded, industrial-grade solution. Whether your factory relies on a semi-automatic toroidal transformer winding machine for flexible batches, or you are looking to upgrade your line with a fully automatic toroidal transformer winding machine for mass production, the core engineering of your machinery dictates your long-term yield.
Let's unpack the high-end technical standards, advanced kinematics, and intelligent controls that make the KX-29T an essential asset for configuring a high-efficiency toroidal inductor winding machine or a precision toroidal instrument transformer winding machine.
1. Robust Engineering for Extreme Durability
A machine is only as good as its chassis. Unlike budget imitators that use thin sheet metal or lightweight castings to cut production costs, the KX-29T features a heavy-duty structural design. Built with solid, premium parts, this machine offers exceptional structural mass that dampens vibrations and micro-shocks during high-speed operation.
Its sleek, neat exterior reflects high-end industrial aesthetics. This rigid frame ensures that whether the system is configured as a heavy-duty toroidal inductor winding machine or an ultra-precise toroidal instrument transformer winding machine, it will protect internal bearings, maintain critical tooling tolerances, and provide years of continuous, reliable performance in demanding factory environments.
2. High-Torque Servo Performance with Flawless Turn Accuracy
At the core of the KX-29T is an advanced technical layout built on strict European manufacturing principles. The primary orbital spindle of this Servo Motor Toroidal Core Winding Machine is driven by a high-torque, industrial-grade servo motor. When paired with our high-speed proximity switch tracking matrix, the closed-loop system delivers 100% accurate turn counts, preventing the random positioning drift common in basic open-loop induction motors.
Even at its maximum idle head speed of 240 RPM, the machine coordinates spindle rotation and angular positioning in real time, making it the ideal core drive whether integrated into a high-speed automatic toroidal transformer winding machine or a specialized manual-load workstation.
3. Micro-Step Pitch Resolution and Uniform Layer Packing
To ensure perfect wire distribution and prevent irregular overlapping, the KX-29T uses a high-capacity NEMA 86 stepper motor to govern core indexing and layer tracking.
- Dynamic Control: Technicians can choose between fully automatic or manual control over the exact line spacing intervals via the intuitive touchscreen interface.
- Neat Alignment: This precise step-indexing array allows the machine to guide each turn tightly and neatly against the core, maximizing slot fill factors and improving the thermal and electromagnetic performance of the finished component.
4. Micro-Step Pitch Resolution and Uniform Layer Packing
TThe KX-29T is a highly versatile workhorse capable of handling a broad wire diameter spectrum-from 0.2mm all the way to 1.6mm. Whether your product data requires a mid-gauge profile like 0.6mm or a heavy power wire up to 1.2mm, a single KX-29T unit can complete all winding operations flawlessly. Furthermore, the robust tensioners and feed guides are engineered to handle multiple strands of wire in parallel simultaneously, allowing you to wind high-current multi-strand coils without needing separate operations.
5. Instant Stop Flexibility and Dynamic Speed Ramping
A standout operational benefit of our gear-driven mechanical design is its ability to stop at any exact position during a winding cycle. On a basic semi-automatic toroidal transformer winding machine, turning off the motor causes the heavy magazine ring to coast forward due to inertia, throwing off turn counts and complicating manual taps. The KX-29T control loop instantly coordinates the servo braking matrix, halting the machine immediately at any stage.
Additionally, the software features fully automatic or manual speed ramping, allowing operators to accelerate or decelerate winding velocities gradually to protect delicate wire enamel insulation from sudden tension changes.
6. Intelligent PLC Control with Global Language Support
The platform features a brand-new PLC control system paired with an interactive touchscreen user interface (HMI). This modern setup replaces complex programming codes with straightforward text commands, simplifying training and shortening setup times.
Operators can easily program bi-directional core vectors (fully automatic or manual settings for forward/reverse directions) on the fly. To support international manufacturing teams, the interface includes comprehensive multilingual support, allowing operators to toggle instantly to native Polish (Język polski) for full visibility into live diagnostics and parameter screens.
The Reality Check: Budget Sliders vs. KX-29T Branded Engineering
When source-testing machinery, price-focused comparisons often overlook real-world production risks. Some low-end suppliers claim their basic slider-type machines can handle complex tasks-such as winding a 0.6mm wire diameter up to 1,200 turns (1200T)-at a fraction of the cost.
However, running high turn counts on a low-cost slider platform introduces significant mechanical risks:
- Friction Variations: Sliders rely on surface friction along the ring, causing tension spikes that can stretch or break the wire.
- Loose Layers: Sliders lack the mechanical grip needed to wind wire tightly around the core, resulting in uneven layers and poor electromagnetic performance.
- Insulation Strip: The erratic sliding action often rubs against the wire coating, creating micro-abrasions in the enamel that cause components to fail high-voltage insulation tests.
The KX-29T eliminates these risks entirely through its positive mechanical gear mesh. Different engineering choices naturally lead to different manufacturing costs. Budget vendors sell low-end prices, but as a branded supplier, we deliver long-term industrial reliability for your automatic toroidal transformer winding machine or specialized winding line. There is simply no comparison.
Professional After-Sales Service You Can Rely On
Investing in a high-performance automation platform is a long-term technical partnership. When equipment requires maintenance or parameter adjustments on a busy shop floor, waiting days for a response from a generic online vendor can delay your production schedules.
We back every KX-29T deployment with highly responsive, expert after-sales service. Our technical team is staffed by experienced field engineers who understand movement electronics, electromagnetic variables, and fluid mechanics. Whether you need help setting up a complex multi-tap transformer layout or sourcing a replacement part for your semi-automatic toroidal transformer winding machine, our team provides prompt, professional support to keep your automated production lines running smoothly year after year.
Secure Your Production Yields Today
Don't let missing turns, loose layers, or unexpected equipment downtime impact your factory's output. The KX-29T Servo Motor Toroidal Core Winding Machine combines raw mechanical power with micro-step precision to optimize your winding workflows and deliver consistent, high-quality results.
