Product Overview
This vertical fully-automatic CNC coil winding machine is an upgraded intelligent winding solution independently developed for inductance components, spring coils, and small-size toroidal magnetic cores.Different from traditional horizontal winding equipment, the upright vertical structural design optimizes the overall stress of enameled copper wire during winding, fundamentally solves the problems of wire sagging, loose winding and wire breakage of fine wires. It is perfectly adapted to the precision production of electronic inductors, spring coils, common mode chokes and SQ core magnetic components, and fully meets the intelligent upgrading needs of global electronic component manufacturing factories.
Core Structural & Technical Advantages
Optimized Vertical Integrated Body Design
Adopts upright standing overall layout, which eliminates gravity interference on ultra-fine enameled wires during high-speed winding. The compact internal structure maximizes workshop space utilization, and the enclosed industrial body ensures stable long-time continuous operation in factory production environment.
01
Full CNC Servo Intelligent Control System
- Real-time accurate turns counting, winding error is controlled within ±1 turn
- Automatic constant tension adjustment system, effectively protects 0.06mm-0.196mm ultra-fine copper wire from scratching and breaking
- One-click parameter storage, supports batch program calling for mass production
02
Full-process Automatic Winding Operation
The whole production process is fully automatic without frequent manual intervention: automatic wire feeding → precise positioning → automatic winding → wire clamping → automatic cutting → finished product unloading. Only one operator can manage multiple machines at the same time, greatly reducing labor cost and improving overall production efficiency.
03
Wide Adaptability for Cores & Wire Diameters
Universally compatible with diversified magnetic cores including inductance cores, spring coil blanks, SQ cores, small toroidal cores. Covers ultra-fine wire to medium wire winding range, meets customized production requirements of different inductance, coil and electronic component products.
04
Widely Applied Industries
This vertical CNC automatic winding machine is widely used in global manufacturing fields:

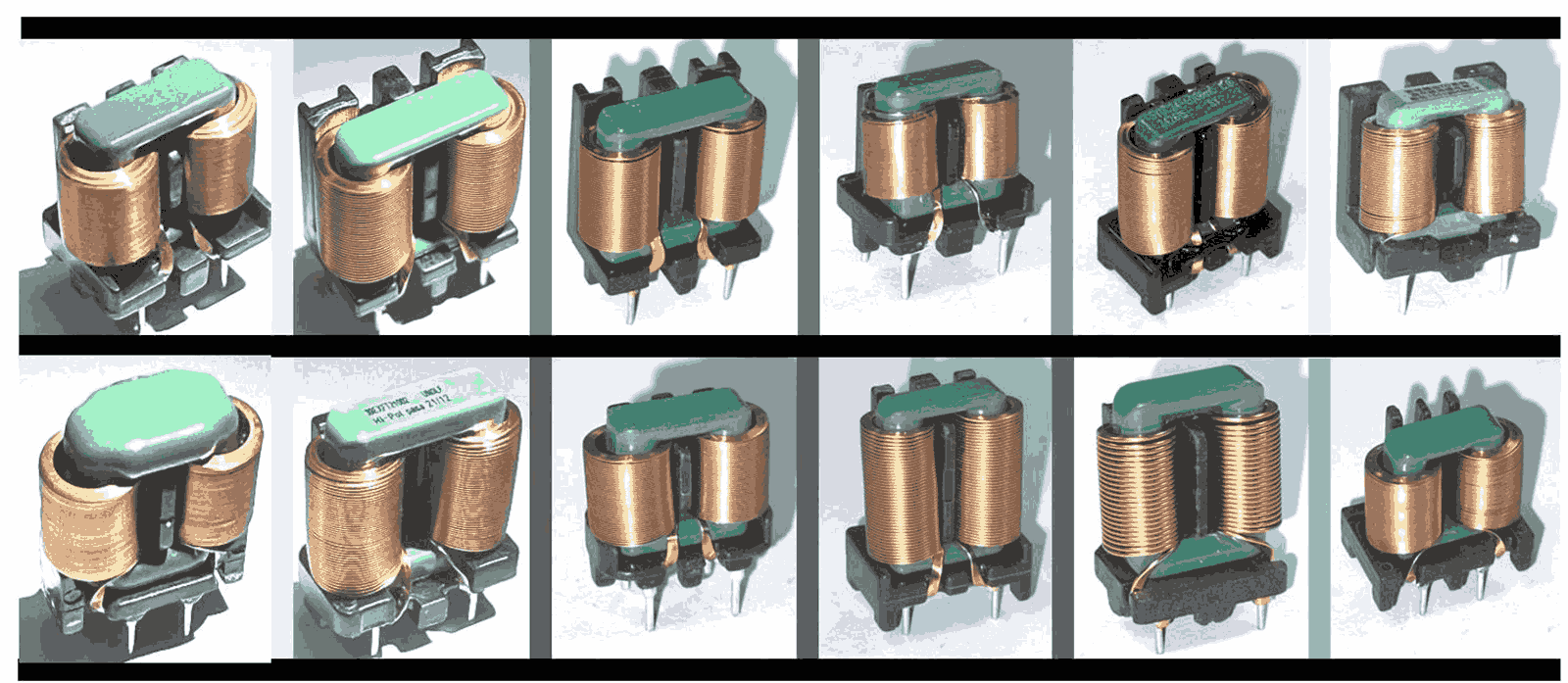

Inductor & common mode choke production factories
Inductance spring coil electronic component manufacturers
Small toroidal transformer and electrical accessory workshops
New energy automotive electronic component enterprises
Industrial control precision coil processing industry
Production Value & After-sales Support
With stable industrial quality, high winding consistency and intelligent automatic operation, this equipment helps manufacturers realize production line automation transformation, reduce defective product rate, and improve market competitiveness.We provide complete global technical support, equipment operation training, parameter customization and long-term spare parts supply service for all worldwide customers. Welcome to consult detailed technical specifications and exclusive factory quotation.
