As a supplier of rectangular core tapping machines, I'm often asked about the various features and functions of our equipment. One of the most important and frequently inquired - about functions is the tapping angle adjustment function. In this blog, I'll delve deep into what this function is, its significance, and how it benefits users in different applications.
Understanding the Tapping Angle Adjustment Function
The tapping angle adjustment function of a rectangular core tapping machine allows operators to modify the angle at which the taping material is applied to the rectangular core. In a standard tapping process, the tape is usually wrapped around the core to provide insulation, protection, or other functional benefits. However, depending on the specific requirements of the application, a fixed taping angle may not always be sufficient.
The angle adjustment mechanism typically consists of a set of mechanical or electrical components that can be controlled either manually or automatically. Manual adjustment usually involves using hand - cranks or levers to change the position of the taping head relative to the core. On the other hand, automatic adjustment is often achieved through programmable controllers that can precisely set and change the taping angle based on pre - defined parameters.
Significance of the Tapping Angle Adjustment Function
1. Adaptability to Different Core Shapes and Sizes
Rectangular cores come in a wide variety of shapes and sizes. Some cores may have rounded edges, while others may have sharp corners. Different taping angles are required to ensure that the tape adheres properly to the core surface. For example, when taping a core with sharp corners, a steeper taping angle may be needed to prevent the tape from wrinkling or lifting at the edges. By adjusting the tapping angle, our rectangular core tapping machine can accommodate cores of different geometries, making it a versatile tool for manufacturers dealing with various product designs.
2. Improved Insulation Performance
Proper insulation is crucial in many electrical applications. The tapping angle can significantly impact the insulation performance of the taped core. When the tape is applied at the optimal angle, it can cover the core surface more evenly, leaving no gaps or air pockets. This helps to improve the dielectric strength of the insulation and reduces the risk of electrical breakdown. For instance, in high - voltage transformers, a well - taped core with the right tapping angle can enhance the overall reliability and safety of the equipment.
3. Enhanced Productivity
The ability to adjust the tapping angle quickly and accurately can lead to increased productivity. Operators can switch between different taping angles without having to make major mechanical adjustments or change the entire taping setup. This reduces downtime between different production runs and allows for a more efficient manufacturing process. Additionally, automatic tapping angle adjustment can be integrated with other machine functions, such as speed control and tape tension adjustment, to further optimize the production process.
How the Tapping Angle Adjustment Function Works in Our Machines
Our rectangular core tapping machines are equipped with state - of - the - art technology to ensure precise and reliable tapping angle adjustment. The manual adjustment option provides operators with a simple and intuitive way to fine - tune the taping angle. They can use the hand - cranks to make small adjustments and observe the effect on the taping process in real - time.
For more complex and high - volume production, our machines offer automatic tapping angle adjustment. This is achieved through a programmable logic controller (PLC) that can store multiple taping angle settings. Operators can select the desired angle from a pre - programmed menu or input new settings directly into the controller. The PLC then sends signals to the motorized components of the taping head to adjust the angle accordingly.
In addition, our machines are equipped with sensors that can detect the position and orientation of the core. This information is used by the control system to automatically adjust the tapping angle to ensure optimal taping performance. For example, if the core is slightly misaligned, the machine can compensate by adjusting the taping angle to maintain consistent tape application.
Applications of the Tapping Angle Adjustment Function
1. Electrical Transformers
In the manufacturing of electrical transformers, the tapping angle adjustment function is essential for ensuring proper insulation of the rectangular cores. Different types of transformers, such as power transformers and distribution transformers, may require different taping angles depending on their voltage ratings and operating conditions. Our tapping machines can be customized to meet the specific requirements of transformer manufacturers, helping them to produce high - quality products.
2. Inductors and Chokes
Inductors and chokes are important components in electronic circuits. The taping of their rectangular cores can affect their electrical performance. By adjusting the tapping angle, manufacturers can improve the magnetic properties of these components and reduce electromagnetic interference. Our tapping machines are widely used in the production of inductors and chokes for various applications, including telecommunications, automotive electronics, and power supplies.
3. Other Electrical Components
There are many other electrical components that use rectangular cores, such as relays, solenoids, and sensors. The tapping angle adjustment function in our machines can be applied to these components as well, providing manufacturers with a reliable solution for taping and insulating their products.
Conclusion
The tapping angle adjustment function of our rectangular core tapping machine is a powerful feature that offers numerous benefits to manufacturers in the electrical industry. It provides adaptability to different core shapes and sizes, improves insulation performance, and enhances productivity. Whether you are a small - scale manufacturer or a large - scale production facility, our machines can help you achieve high - quality taping results.

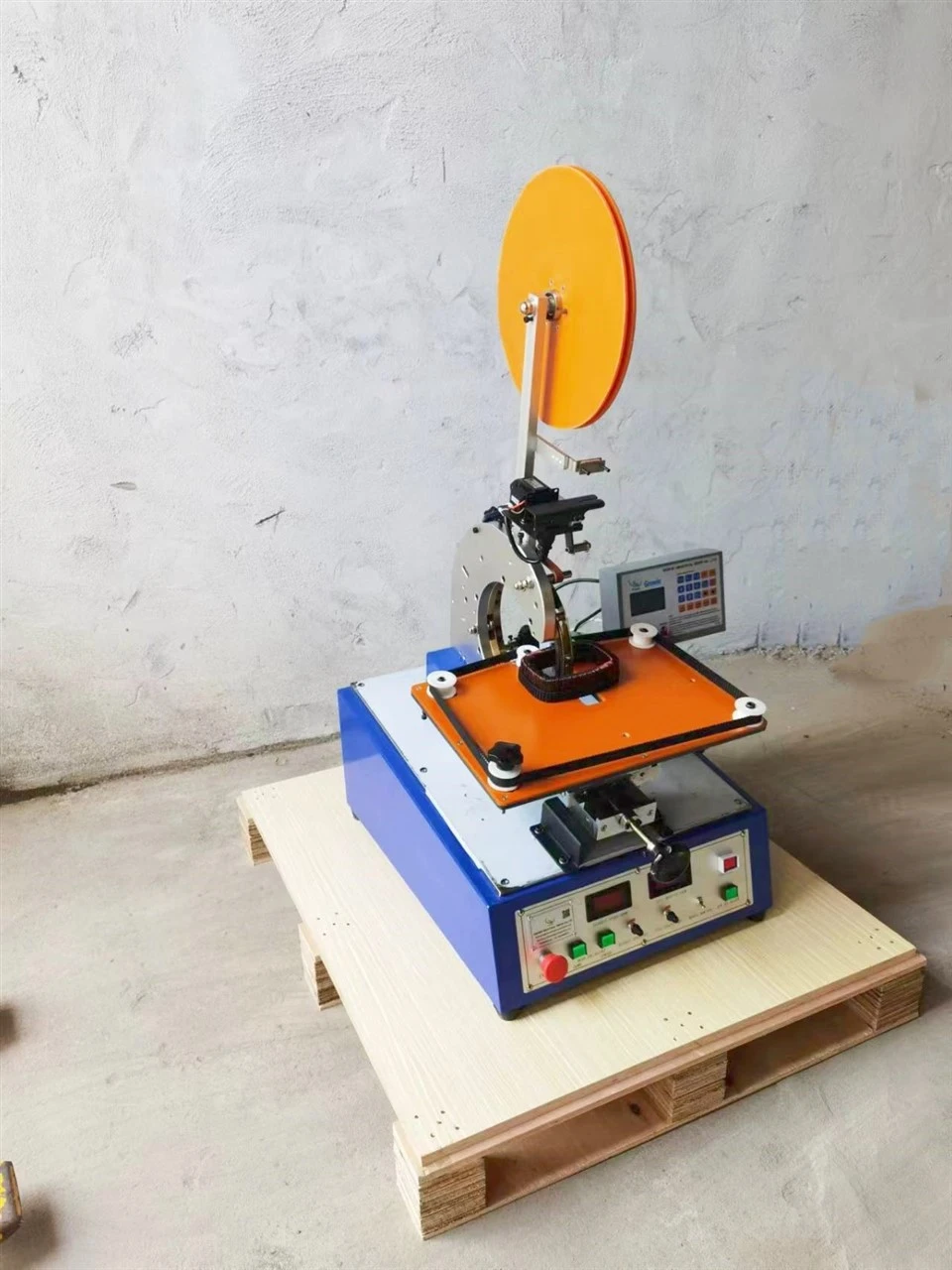

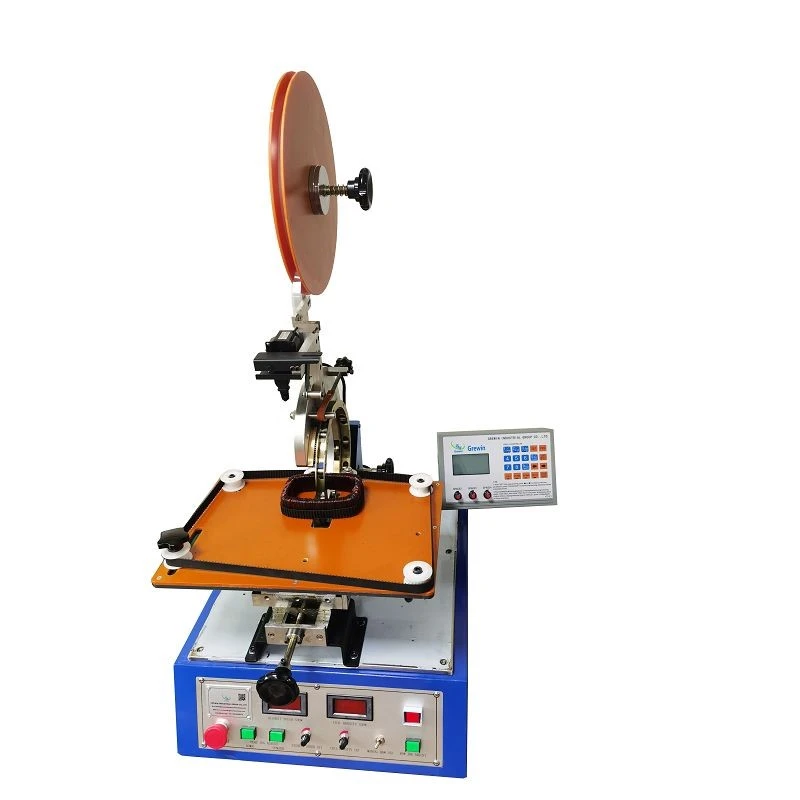

If you are interested in learning more about our Rectangular Core Insulation Taping Machine or have any questions regarding the tapping angle adjustment function, please feel free to contact us for a detailed discussion. We are always ready to assist you in finding the best solution for your tapping needs.
