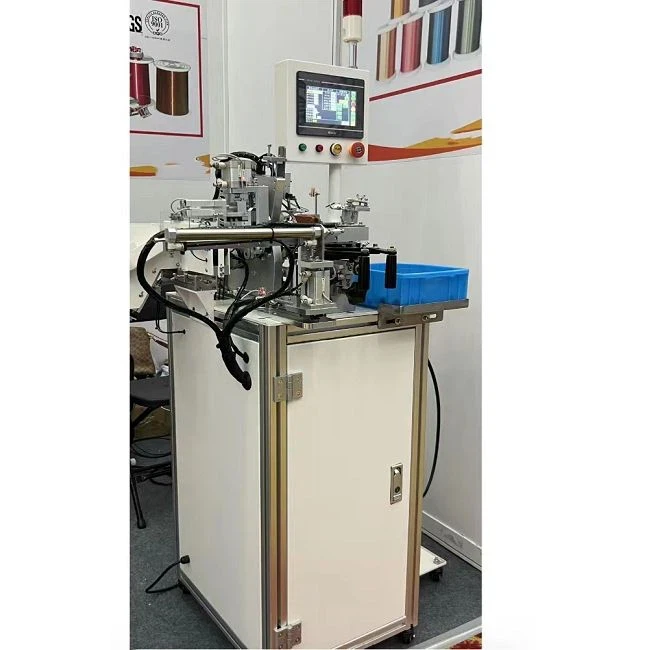

High‑precision Automatic Toroidal Coil Winding Machine

The KXS‑910 intelligent fully automatic toroidal coil winding machine is a compact, high‑speed CNC winding system developed for mass production of small‑to‑medium toroidal transformers, inductors, filters, and sensor coils. Designed for high precision and easy operation, it delivers consistent winding quality while lowering labor and setup costs.

Solve the problem of low production efficiency: 3000 RPM high‑speed winding greatly improves output compared with manual and semi‑automatic equipment.

Solve the problem of unstable product quality: Real‑time tension monitoring and precise control eliminate batch quality differences.

Solve the problem of high labor cost: Full‑automatic operation reduces dependence on senior skilled workers.

Solve the problem of difficult parameter adjustment: CNC one‑key programming, simple operation, short worker training cycle.

1. Next-Generation Autonomous CNC Core

Departing from conventional PLC architectures typical of standard industry winding machinery, this system integrates a proprietary, self-contained intelligent CNC processor. The control landscape features real-time telemetry tracking, a centralized dynamic recipe database (supporting instantaneous program saving and retrieval), and an automated diagnostic alert grid. The optimized interface streamlines programming protocols, allowing operators to configure complex multi-stage winding profiles in under 180 seconds-significantly advancing process throughput compared to legacy control frameworks.

2. Anti-Harmonic Kinetic Stabilization Architecture

The mechanical drivetrain is constructed utilizing premium, low-tolerance imported bearings paired with high-durability, wear-resistant gear trains housed within an anti-vibration structural chassis. This structural rigidness suppresses mechanical harmonics and inertia spikes, ensuring absolute uniformity in coil tension and structural pitch even during continuous, high-speed duty cycles reaching 3,000 RPM. This precision engineering eliminates structural looseness and lateral layer shifting, which frequently affect lower-tier production machinery.

3. Dual-Scenario Scalability and Modular Versatility

While optimized for micro-gauge, ultra-precision wire deposition, the machine layout features integrated electrical and mechanical expansion ports for heavy-gauge winding assemblies and universal fixtures. This modular flexibility enables rapid field adaptation to process medium-wire toroidal transformers and heavy-duty power inductors. By facilitating multi-application production on a unified hardware platform, the system drastically lowers capital expenditures (CAPEX) for manufacturing facilities.

4. Universal Grid Synchronization and Ergonomic Geometry

The internal power conditioning sub-system is engineered for global compatibility, adapting automatically to both 50 Hz and 60 Hz supply frequencies to ensure stable operation across international power grids. The high-definition HMI supports multi-lingual software deployment for seamless cross-border workforce adaptation, while the localized, low-footprint chassis geometry allows for seamless integration into high-density or spatial-restricted fabrication cells.

5. Lifecycle Technical Support and Tailored Engineering

Each system is backed by an industrial support framework comprising global remote diagnostic assistance, comprehensive video-guided operational training modules, and long-term supply chain access to specialized components and wear parts. In contrast to standard, rigid off-the-shelf production units, the engineering platform supports extensive structural customization-including bespoke modifications for non-standard core geometries, extreme wire profiles, and unique manufacturing conditions.

Small toroidal transformers

Power inductors & choke coils

EMI/RFI filters

Medical device coils

Automotive electronic components

Industrial control sensors

Telecommunication transformers

Compared with conventional winding equipment, our intelligent model integrates high precision, full automation and multi‑scene adaptability, with higher production efficiency, more stable quality and stronger scalability. It is the preferred production equipment for enterprises to upgrade automation and improve product competitiveness.

All core components are imported high‑quality parts, with long service life and stable performance. The machine passes strict factory testing before delivery. We provide global remote technical guidance, multi‑language operation training video, 2‑year warranty for whole machine and lifelong technical support, which is unmatched by many small manufacturers with only short‑term after‑sales service.

It is widely used in high‑precision electronic manufacturing fields such as automotive electronics, medical equipment, industrial control sensors, new energy accessories, communication power supplies and household appliance control modules, serving electronic component factories, transformer manufacturers and electronic assembly enterprises all over the world.

Compared with imported high‑end winding equipment, our intelligent model has the same precision and stability, but with lower purchase cost and faster delivery cycle. Compared with domestic ordinary equipment, it has longer service life, lower failure rate and higher production efficiency, bringing higher long‑term return on investment for customers.
